430000 Series

Catalog

CONN BARRIER STRIP 4CIRC 0.438"

Part	Pitch [x]	Pitch [x]	Material Flammability Rating	Bottom Termination	Number of Rows	Terminal Block Type	Terminal Screw Finish	Wire Gauge [Min]	Wire Gauge [Max]	Number of Circuits	Mounting Type	Terminal Screw Material	Number of Wire Entries	Material - Insulation	Operating Temperature	Top Termination	Barrier Type	Features	Voltage Rating	Current Rating (Amps)	Number of Circuits [custom]

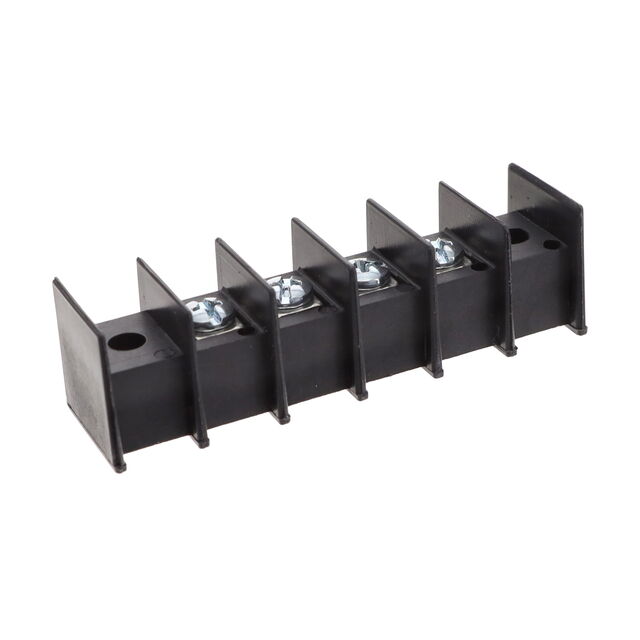

Curtis Industries 430000-04-0	11.12 mm	0.438 in	UL94 V-0	Closed	1	Barrier Block	Zinc	12 AWG	22 AWG	4	Chassis Panel	Steel	4	Polypropylene (PP)	105 C	Screws	2 Wall (Dual)	Flange	600 V	20 A
Curtis Industries 430000-19-0	11.12 mm	0.438 in	UL94 V-0	Closed	1	Barrier Block	Zinc	12 AWG	22 AWG	19	Chassis Panel	Steel	19	Polypropylene (PP)	105 C	Screws	2 Wall (Dual)	Flange	600 V	20 A
Curtis Industries 430000-03-0	11.12 mm	0.438 in	UL94 V-0	Closed	1	Barrier Block	Zinc	12 AWG	22 AWG	3	Chassis Panel	Steel	3	Polypropylene (PP)	105 C	Screws	2 Wall (Dual)	Flange	600 V	20 A
Curtis Industries 430000-20-0	11.12 mm	0.438 in	UL94 V-0	Closed	1	Barrier Block	Zinc	12 AWG	22 AWG	20	Chassis Panel	Steel	20	Polypropylene (PP)	105 C	Screws	2 Wall (Dual)	Flange	600 V	20 A
Curtis Industries 430000-06-0	11.12 mm	0.438 in	UL94 V-0	Closed	1	Barrier Block	Zinc	12 AWG	22 AWG	6	Chassis Panel	Steel	6	Polypropylene (PP)	105 C	Screws	2 Wall (Dual)	Flange	600 V	20 A
Curtis Industries 430000-10-0	11.12 mm	0.438 in	UL94 V-0	Closed	1	Barrier Block	Zinc	12 AWG	22 AWG	10	Chassis Panel	Steel	10	Polypropylene (PP)	105 C	Screws	2 Wall (Dual)	Flange	600 V	20 A
Curtis Industries 430000-08-0	11.12 mm	0.438 in	UL94 V-0	Closed	1	Barrier Block	Zinc	12 AWG	22 AWG		Chassis Panel	Steel	8	Polypropylene (PP)	105 C	Screws	2 Wall (Dual)	Flange	600 V	20 A	8
Curtis Industries 430000-07-0	11.12 mm	0.438 in	UL94 V-0	Closed	1	Barrier Block	Zinc	12 AWG	22 AWG	7	Chassis Panel	Steel	7	Polypropylene (PP)	105 C	Screws	2 Wall (Dual)	Flange	600 V	20 A
Curtis Industries 430000-12-0	11.12 mm	0.438 in	UL94 V-0	Closed	1	Barrier Block	Zinc	12 AWG	22 AWG	12	Chassis Panel	Steel	12	Polypropylene (PP)	105 C	Screws	2 Wall (Dual)	Flange	600 V	20 A

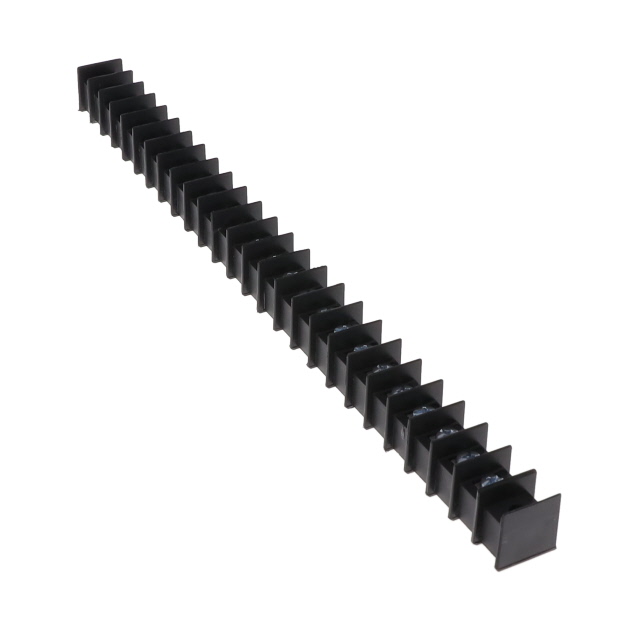

Curtis Industries 430000-24-0	11.12 mm	0.438 in	UL94 V-0	Closed	1	Barrier Block	Zinc	12 AWG	22 AWG	24	Chassis Panel	Steel		Polypropylene (PP)	105 C	Screws	2 Wall (Dual)	Flange	600 V	20 A
