745-130 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 130POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Read Out	Contact Material	Contact Finish	Mounting Type	Number of Positions/Bay/Row	Pitch	Pitch	Gender	Card Thickness [Max]	Card Thickness [Min]	Color	Contact Type	Termination	Number of Positions	Number of Rows [custom]	Card Type	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]
EDAC Inc. 745-130-560-206	2	Polyester Thermoplastic	Dual	Copper Alloy	Gold	Through Hole	65	0.1 "	2.54 mm	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever Make Before Break	Press-Fit	130	2	Non Specified - Dual Edge	30 Áin	0.76 Ám	-40 C	105 ░C

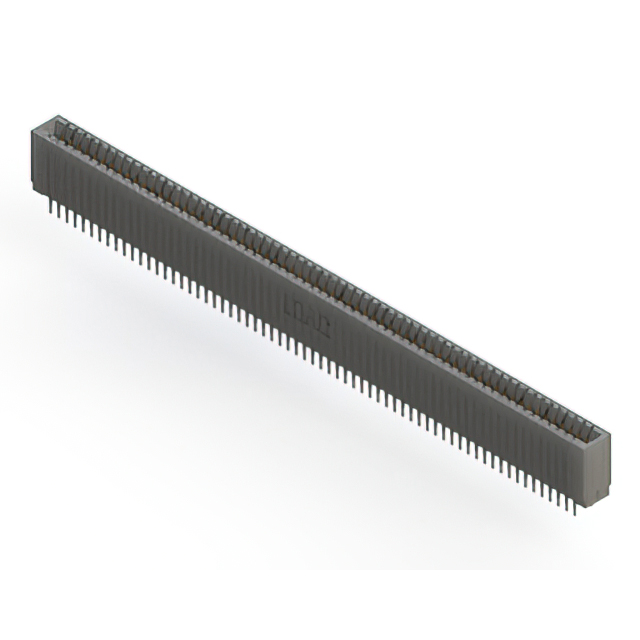

EDAC Inc. 745-130-560-201	2	Polyester Thermoplastic	Dual	Copper Alloy	Gold	Through Hole	65	0.1 "	2.54 mm	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever Make Before Break	Press-Fit	130	2	Non Specified - Dual Edge	30 Áin	0.76 Ám	-40 C	105 ░C
EDAC Inc. 745-130-525-206	2	Polyester Thermoplastic	Dual	Copper Alloy	Gold	Through Hole	65	0.1 "	2.54 mm	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever	Press-Fit	130	2	Non Specified - Dual Edge	30 Áin	0.76 Ám	-40 C	105 ░C
EDAC Inc. 745-130-522-206	2	Polyester Thermoplastic	Dual	Copper Alloy	Gold	Through Hole	65	0.1 "	2.54 mm	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever	Press-Fit	130	2	Non Specified - Dual Edge	30 Áin	0.76 Ám	-40 C	105 ░C
EDAC Inc. 745-130-520-206	2	Polyester Thermoplastic	Dual	Copper Alloy	Gold	Through Hole	65	0.1 "	2.54 mm	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever	Press-Fit	130	2	Non Specified - Dual Edge	30 Áin	0.76 Ám	-40 C	105 ░C

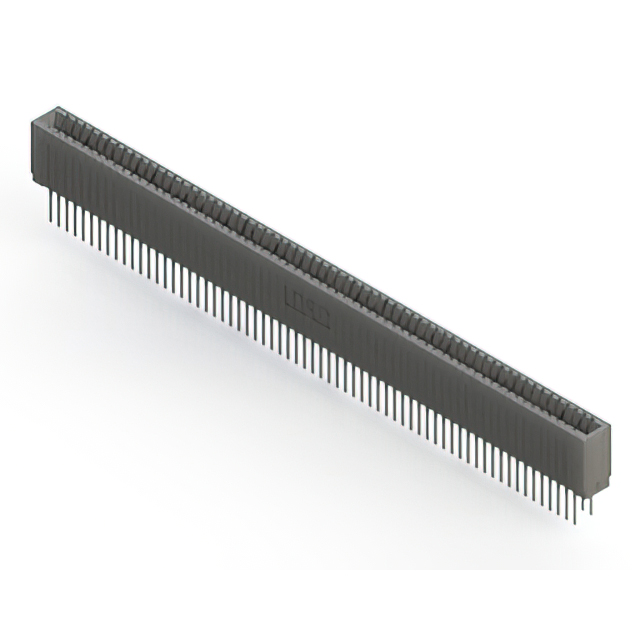

EDAC Inc. 745-130-522-201	2	Polyester Thermoplastic	Dual	Copper Alloy	Gold	Through Hole	65	0.1 "	2.54 mm	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever	Press-Fit	130	2	Non Specified - Dual Edge	30 Áin	0.76 Ám	-40 C	105 ░C
EDAC Inc. 745-130-540-206	2	Polyester Thermoplastic	Dual	Copper Alloy	Gold	Through Hole	65	0.1 "	2.54 mm	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever	Press-Fit Wire Wrap	130	2	Non Specified - Dual Edge	30 Áin	0.76 Ám	-40 C	105 ░C
EDAC Inc. 745-130-541-201	2	Polyester Thermoplastic	Dual	Copper Alloy	Gold	Through Hole	65	0.1 "	2.54 mm	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever	Press-Fit Wire Wrap	130	2	Non Specified - Dual Edge	30 Áin	0.76 Ám	-40 C	105 ░C
EDAC Inc. 745-130-525-201	2	Polyester Thermoplastic	Dual	Copper Alloy	Gold	Through Hole	65	0.1 "	2.54 mm	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Cantilever	Press-Fit	130	2	Non Specified - Dual Edge	30 Áin	0.76 Ám	-40 C	105 ░C
