09140052 Series

Manufacturer: HARTING

Catalog

HEAVY DUTY CONNECTOR, HAN-MODULAR SERIES, INSERT, 5 CONTACTS, PLUG

Part	Material Flammability Rating	Housing Material	Color	Termination Style	Connector Type	Gender	Contact Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Finish	Voltage Rating	Current Rating (Amps)
HARTING 09140052646	UL94 V-0	Polycarbonate (PC)	Gray	Crimp Screw	Module	Male	Han®	5	125 °C	-40 C
HARTING 09140052647	UL94 V-0	Polycarbonate (PC)	Gray	Crimp Screw	Module	Male	Han®	5	125 °C	-40 C

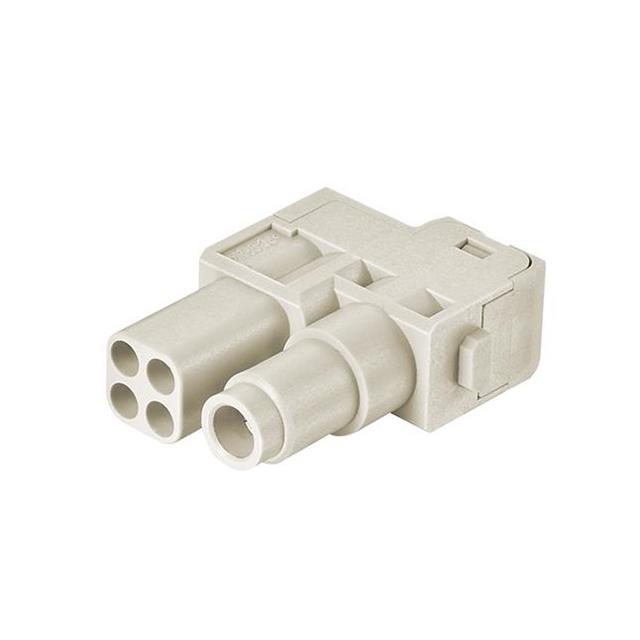

HARTING 09140052741	UL94 V-0	Polycarbonate (PC)	Gray	Crimp Screw	Module	Female	Han®	5	125 °C	-40 C
HARTING 09140052616	UL94 V-0	Polycarbonate (PC)	Gray	Push In	Module	Male		5	125 °C	-40 C	Copper Alloy	Silver	600 V	16 A
HARTING 09140052601	UL94 V-0	Polycarbonate (PC)	Gray	Screw	Module	Male		5	125 °C	-40 C				16 A

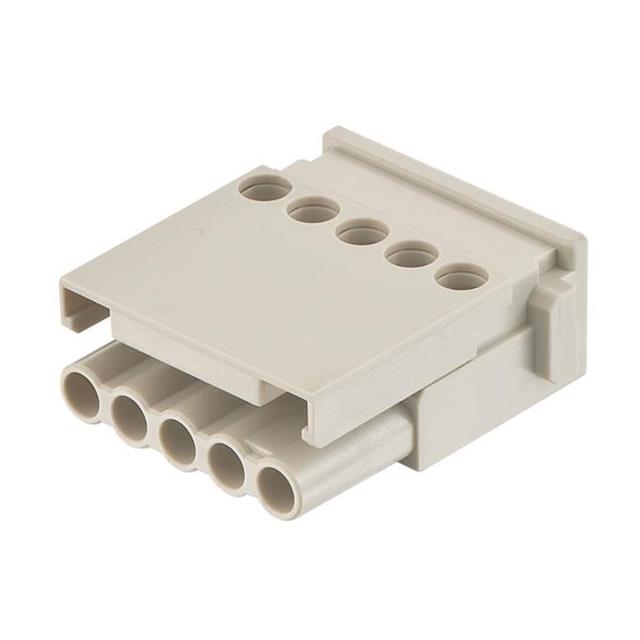

HARTING 09140052701	UL94 V-0	Polycarbonate (PC)	Gray	Screw	Module	Female		5	125 °C	-40 C				16 A
HARTING 09140052716	UL94 V-0	Polycarbonate (PC)	Gray	Push In	Module	Female		5	125 °C	-40 C	Copper Alloy	Silver	600 V	16 A

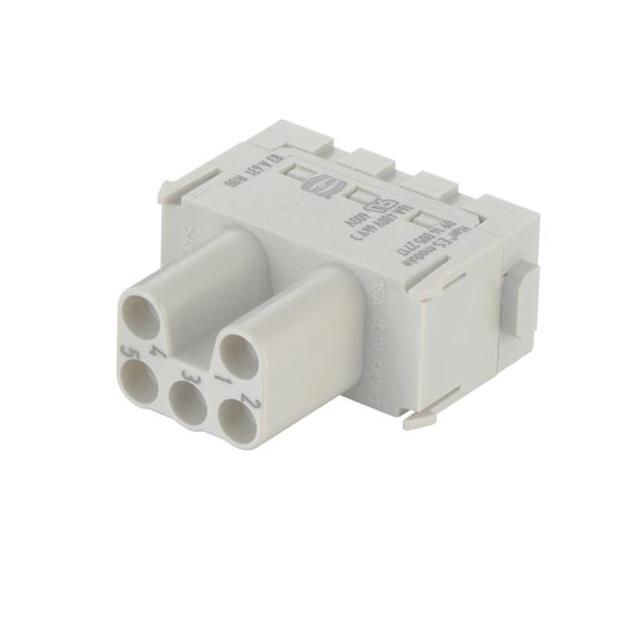

HARTING 09140052717	UL94 V-0	Polycarbonate (PC)	Gray	Push In	Module	Female	Han-Modular®	5	125 °C	-40 C	Copper Alloy	Gold	400 V	16 A
HARTING 09140052617	UL94 V-0	Polycarbonate (PC)	Gray	Tension Clamp	Module	Male		5	125 °C	-40 C	Copper Alloy	Gold	400 V	16 A
HARTING 09140052742	UL94 V-0	Polycarbonate (PC)	Gray	Crimp Screw	Module	Female	Han®	5	125 °C	-40 C
