0552-2 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Termination	Tail Type	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Material	Socket Depth	Socket Depth	Length - Overall [x]	Length - Overall [x]	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Socket Depth [z]	Socket Depth [z]	Accepts Pin Diameter [Max]
Mill-Max Manufacturing Corp. 0552-2-15-80-11-27-10-0	-55 C	125 °C	Gold	1.4 mm	0.055 in	0.02 in	0.38 mm	0.015 "	0.51 mm	Solder	No Tail	0.031 in	0.79 mm	Beryllium Copper	0.136 in	3.45 mm	0.17 in	4.32 mm	30 Áin	0.76 Ám	1.02 mm	0.04 in

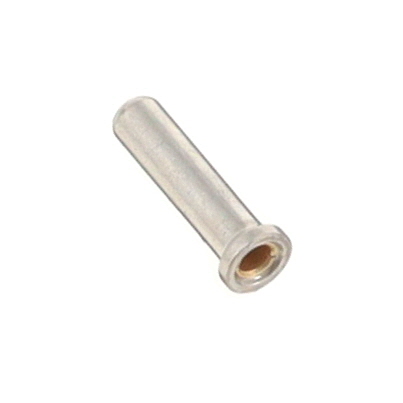

Mill-Max Manufacturing Corp. 0552-2-15-01-21-27-10-0	-55 C	125 °C	Gold	1.4 mm	0.055 in	0.022 in	0.38 mm	0.015 "		Solder	No Tail	0.031 in	0.79 mm	Beryllium Copper			0.17 in	4.32 mm	30 Áin	0.76 Ám	1.02 mm	0.04 in	3.81 mm	0.15 in	0.56 mm

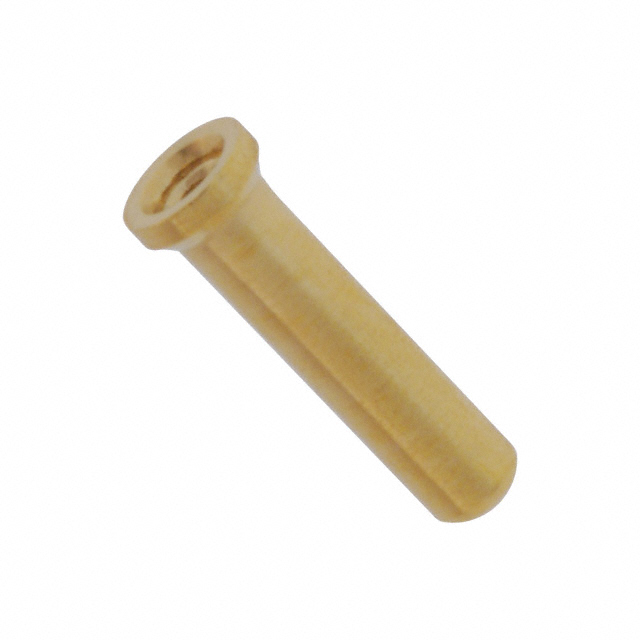

Mill-Max Manufacturing Corp. 0552-2-15-15-11-27-10-0	-55 C	125 °C	Gold	1.4 mm	0.055 in	0.02 in	0.38 mm	0.015 "	0.51 mm	Solder	No Tail	0.031 in	0.79 mm	Beryllium Copper			0.17 in	4.32 mm	30 Áin	0.76 Ám	1.02 mm	0.04 in	3.81 mm	0.15 in
Mill-Max Manufacturing Corp. 0552-2-15-01-21-14-10-0	-55 C	125 °C	Gold	1.4 mm	0.055 in	0.022 in	0.38 mm	0.015 "		Solder	No Tail	0.031 in	0.79 mm	Beryllium Copper			0.17 in	4.32 mm	10 Áin	0.25 Ám	1.02 mm	0.04 in	3.81 mm	0.15 in	0.56 mm
Mill-Max Manufacturing Corp. 0552-2-15-15-21-14-10-0	-55 C	125 °C	Gold	1.4 mm	0.055 in	0.02 in	0.38 mm	0.015 "	0.51 mm	Solder	No Tail	0.031 in	0.79 mm	Beryllium Copper	0.136 in	3.45 mm	0.17 in	4.32 mm	10 Áin	0.25 Ám	1.02 mm	0.04 in

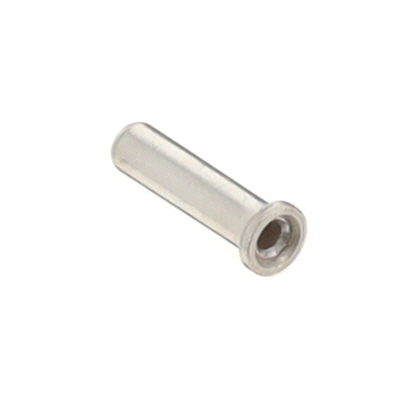

Mill-Max Manufacturing Corp. 0552-2-15-01-11-02-10-0	-55 C	125 °C	Tin-Lead	1.4 mm	0.055 in	0.02 in	0.38 mm	0.015 "	0.51 mm	Solder	No Tail	0.031 in	0.79 mm	Beryllium Copper			0.17 in	4.32 mm	100 µin	2.54 µm	1.02 mm	0.04 in	3.81 mm	0.15 in

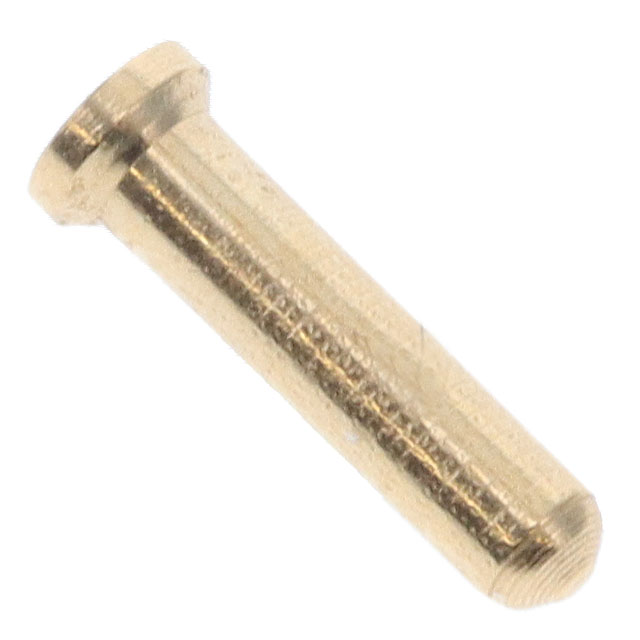

Mill-Max Manufacturing Corp. 0552-2-15-15-21-27-10-0	-55 C	125 °C	Gold	1.4 mm	0.055 in	0.022 in	0.38 mm	0.015 "		Solder	No Tail	0.031 in	0.79 mm	Beryllium Copper			0.17 in	4.32 mm	30 Áin	0.76 Ám	1.02 mm	0.04 in	3.81 mm	0.15 in	0.56 mm
Mill-Max Manufacturing Corp. 0552-2-15-80-21-14-10-0	-55 C	125 °C	Gold	1.4 mm	0.055 in	0.02 in	0.38 mm	0.015 "	0.51 mm	Solder	No Tail	0.031 in	0.79 mm	Beryllium Copper	0.136 in	3.45 mm	0.17 in	4.32 mm	10 Áin	0.25 Ám	1.02 mm	0.04 in

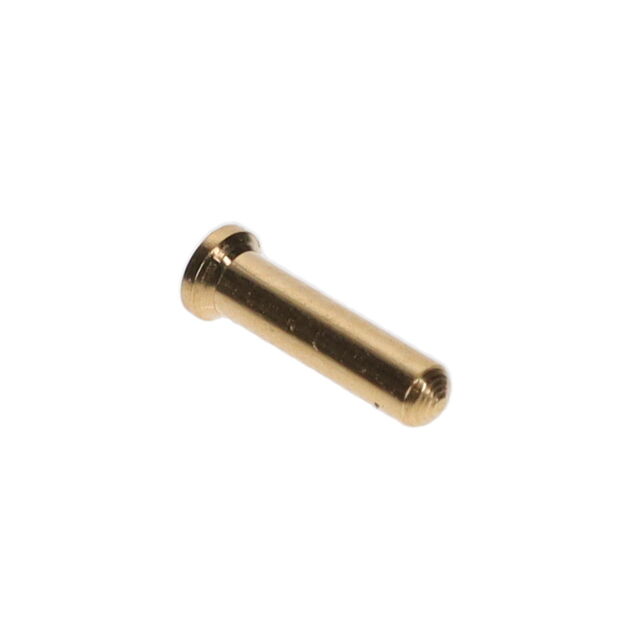

Mill-Max Manufacturing Corp. 0552-2-15-15-11-14-10-0	-55 C	125 °C	Gold	1.4 mm	0.055 in	0.02 in	0.38 mm	0.015 "	0.51 mm	Solder	No Tail	0.031 in	0.79 mm	Beryllium Copper	0.136 in	3.45 mm	0.17 in	4.32 mm	10 Áin	0.25 Ám	1.02 mm	0.04 in
Mill-Max Manufacturing Corp. 0552-2-15-80-11-84-10-0	-55 C	125 °C	Tin	1.4 mm	0.055 in	0.02 in	0.38 mm	0.015 "	0.51 mm	Solder	No Tail	0.031 in	0.79 mm	Beryllium Copper	0.136 in	3.45 mm	0.17 in	4.32 mm	100 µin	2.54 µm	1.02 mm	0.04 in
