1241.1612 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

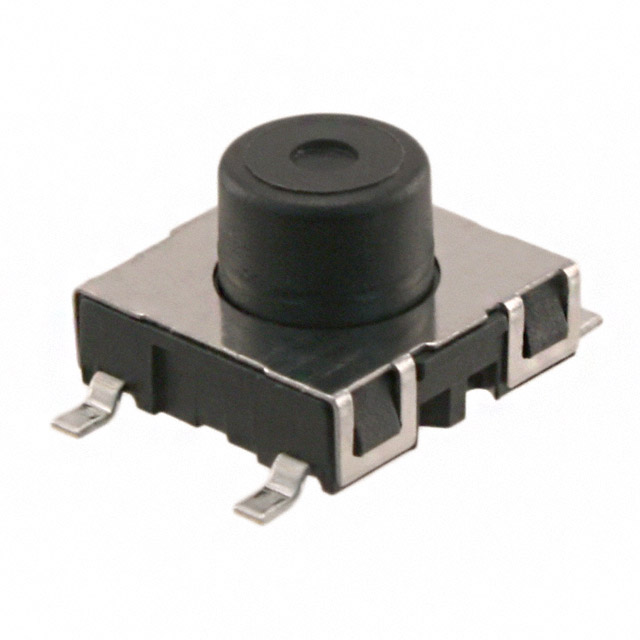

SWITCH TACTILE N.O. SPST ROUND BUTTON GULL WING 0.05A 30VAC 42VDC 0.12VA >1000000CYCLES 1.8N SMD BOX
| Part | Switch Travel | Actuator Material | Mechanical Life | Actuator Height off PCB, Vertical [z] | Switch Function | Outline [y] | Outline [x] | Mounting Type | Features | Termination Style | Circuit | Contact Rating @ Voltage | Operating Force | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Orientation | Illumination | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 0.35 mm | Polyphenylene Sulfide (PPS) | 1000000 Cycles | 7.75 mm | Off-Mom | 11.4 mm | 11.4 mm | Surface Mount | Tactile Feedback | Gull Wing | SPST-NO | 0.05 A 42 VDC | 180 gf | IP40 | 85 °C | -40 C | Top Actuated | Non-Illuminated | Standard |
