88770 Series
Manufacturer: Belden Inc.
Beta
⌘K

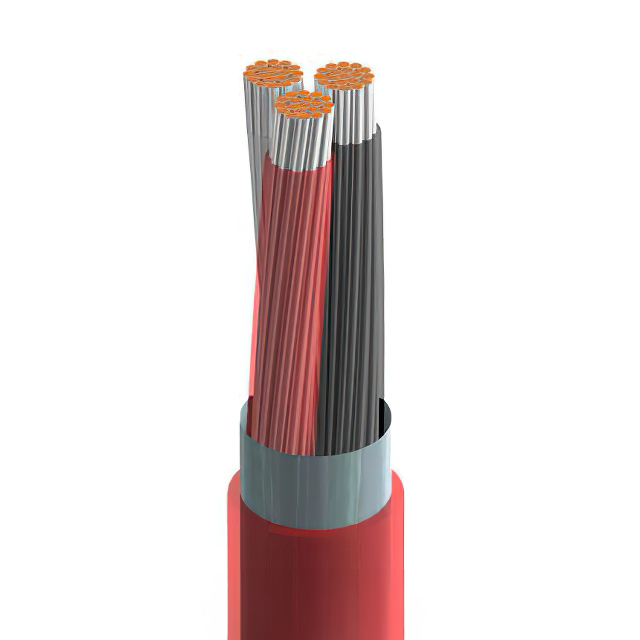

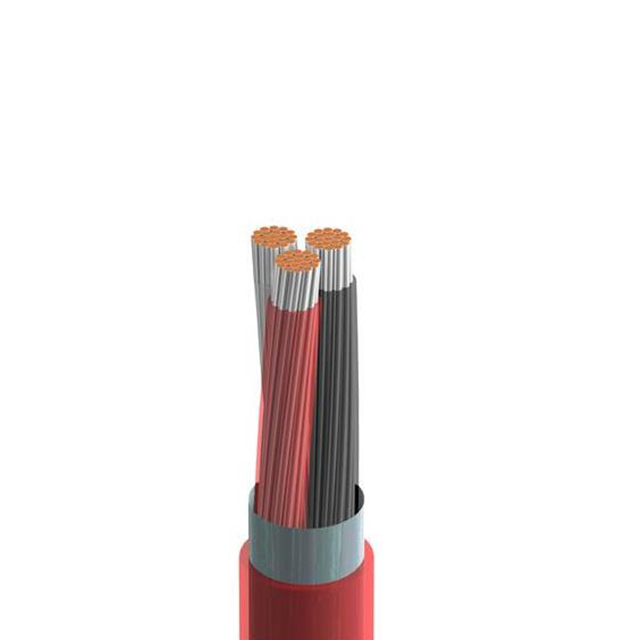

CABLE 3COND 18AWG RED SHLD
| Part | Shield Coverage | Shield Material | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Jacket (Insulation) Material | Wire Gauge | Usage | Length | Length | Shield Type | Voltage | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Number of Conductors | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Drain Wire Gas Resistant | 0.155 in | 3.94 mm | 0.014 in | 0.356 mm | -70 °C | 200 °C | Copper Tinned | Fluorinated Ethylene-Propylene (FEP) Plenum | 18 AWG | Audio Control Instrumentation | 152.4 m | 500 ft | Foil | 300 VDC | Multi-Conductor | 30 AWG | 19 | Red | 3 | Fluorinated Ethylene-Propylene (FEP) |
 Belden Inc. | 100 % | Aluminum | Drain Wire Gas Resistant | 0.155 in | 3.94 mm | 0.014 in | 0.356 mm | -70 °C | 200 °C | Copper Tinned | Fluorinated Ethylene-Propylene (FEP) Plenum | 18 AWG | Audio Control Instrumentation | 304.8 m | 1000 ft | Foil | 300 VDC | Multi-Conductor | 30 AWG | 19 | Red | 3 | Fluorinated Ethylene-Propylene (FEP) |
