2.54mm Pitch C-Grid Header, Dual Row, Low Profile, Vertical, Shrouded, 50 Circuits, 0.13µm Gold (Au) Plating, Black, without PCB Locator, without End Window, Center Polarization Slot, Lead-Free
2.54mm Pitch C-Grid Header, Dual Row, Low Profile, Vertical, Shrouded, 50 Circuits, 0.13µm Gold (Au) Plating, Black, without PCB Locator, without End Window, Center Polarization Slot, Lead-Free
2.54mm Pitch C-Grid Header, Dual Row, Low Profile, Vertical, Shrouded, 50 Circuits, 0.13µm Gold (Au) Plating, Black, without PCB Locator, without End Window, Center Polarization Slot, Lead-Free
| Part | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mounting Type | Insulation Color | Style | Fastening Type | Contact Material | Contact Type | Number of Positions | Contact Finish - Mating | Termination | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Shrouding | Insulation Material | Contact Length - Mating | Contact Length - Mating [x] | Number of Rows | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Contact Shape | Insulation Height | Insulation Height | Number of Positions Loaded | Connector Type | Contact Finish - Post | Overall Contact Length | Overall Contact Length | Material Flammability Rating | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

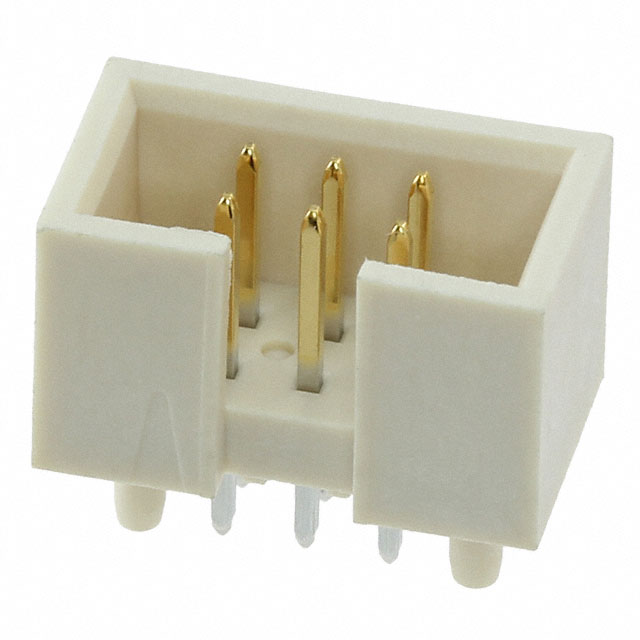

 Molex | 0.135 in | 3.43 mm | 2.5 µm | 98.4 µin | Through Hole | Beige | Board to Cable/Wire | Push-Pull | Copper Alloy | Male Pin | 6 | Gold | Solder | 2.54 mm | 0.1 in | Shrouded - 4 Wall | Glass Filled Nylon 4/6 Polyamide (PA46) | 6.1 mm | 0.24 in | 2 | Automotive General Purpose Lighting Medical Telecommunications | 5.11 µin | 0.13 µm | Board Guide Keying Slot | Square | 0.365 in | 9.27 mm | All | Header | Tin | 12.45 mm | 0.49 " | UL94 V-0 | 0.1 in | 2.54 mm |
