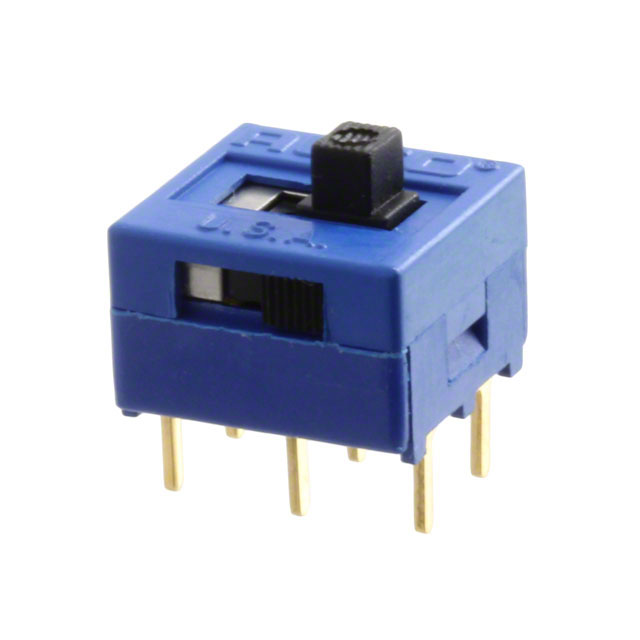

MSSA211 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SWITCH SLIDE DPDT 0.4VA 20V
| Part | Mechanical Life | Operating Force | Actuator Material | Switch Travel | Electrical Life | Voltage Rating - DC | Termination Style | Mounting Type | Contact Timing | Switch Function | Actuator Type | Circuit | Current Rating (Amps) | Voltage Rating - AC | Actuator Length [x] | Features | Contact Finish | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 30000 Steps | 600 gf | Glass Filled Nylon Polyamide (PA) | 3.05 mm | 30000 Cycles | 20 V | PC Pin | Through Hole | Non-Shorting (BBM) | On-On | Standard | DPDT | 0.4 VA | 20 V | 2.79 mm | Epoxy Sealed Terminals | Gold | Copper Alloy |
