CFS-0601 Series

Catalog

SWITCH SLIDE DIP SPST 0.1A 6V

Part	Electrical Life	Actuator Level	Pitch [x]	Pitch	Pitch [x]	Actuator Type	Body Material	Contact Finish	Length	Length [x]	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Mounting Type	Circuit	Voltage Rating	Height Above Board	Height Above Board	Contact Material	Termination Style

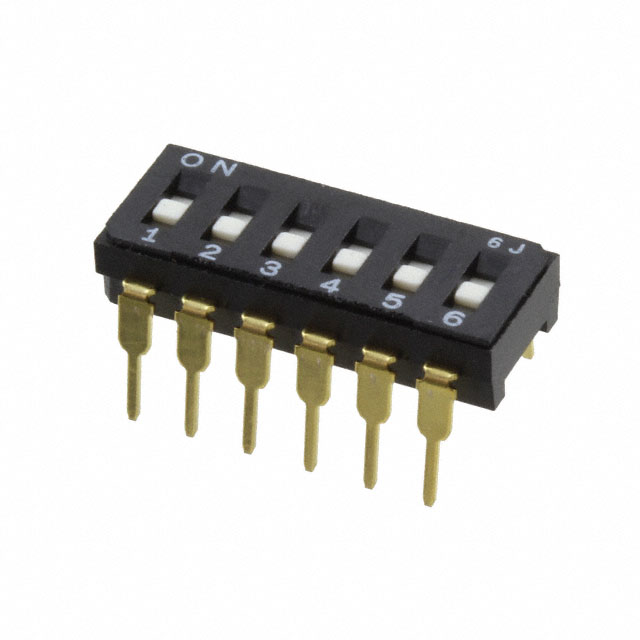

Nidec Components Corporation CFS-0601MC	1000 Cycles	Flush Recessed	0.1 in	Full	2.54 mm	Slide (Standard)	Polyphenylene Sulfide (PPS)	Gold	16.7 mm	0.657 in	100 mA	85 °C	-40 °C	6	Through Hole	SPST	6 VDC	0.177 in	4.5 mm	Copper Alloy	PC Pin
Nidec Components Corporation CFS-0601MA	1000 Cycles	Flush Recessed	0.1 in	Full	2.54 mm	Slide (Standard)	Polyphenylene Sulfide (PPS)	Gold	16.7 mm	0.657 in	100 mA	85 °C	-40 °C	6	Surface Mount	SPST	6 VDC	0.154 in	3.9 mm	Copper Alloy	J Lead

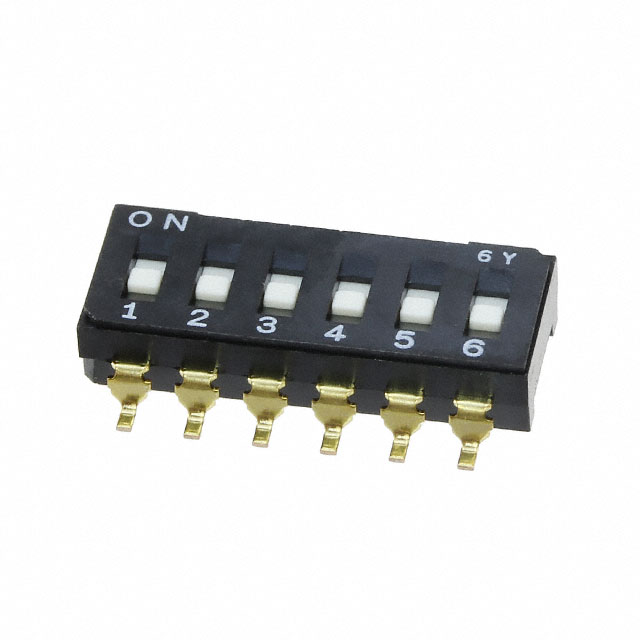

Nidec Components Corporation CFS-0601MB	1000 Cycles	Flush Recessed	0.1 in	Full	2.54 mm	Slide (Standard)	Polyphenylene Sulfide (PPS)	Gold	16.7 mm	0.657 in	100 mA	85 °C	-40 °C	6	Surface Mount	SPST	6 VDC	0.146 in	3.7 mm	Copper Alloy	Gull Wing
Nidec Components Corporation CFS-0601TB	1000 Cycles	Flush Recessed	0.1 in	Full	2.54 mm	Slide (Standard)	Polyphenylene Sulfide (PPS)	Gold	16.7 mm	0.657 in	100 mA	85 °C	-40 °C	6	Surface Mount	SPST	6 VDC	0.146 in	3.7 mm	Copper Alloy	Gull Wing
