AP0100AT Series

Image Signal Processor, 1 MP

Catalog

Image Signal Processor, 1 MP

Part	Qualification	Supplier Device Package	Grade	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Function	Standards	Applications	Control Interface

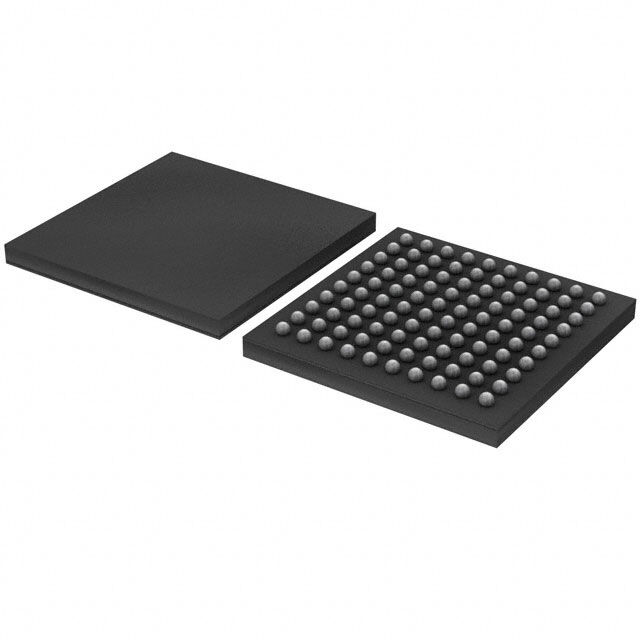

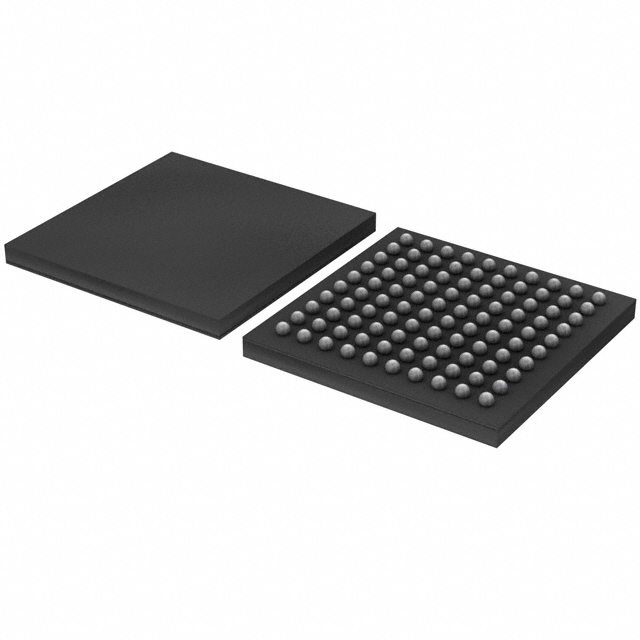

ON Semiconductor AP0100AT2L00XUGA0-DR	AEC-Q100	100-VFBGA (7x7)	Automotive	100-VFBGA
ON Semiconductor AP0100AT2L00XUGA0-TR	AEC-Q100	100-VFBGA (7x7)	Automotive	100-VFBGA	3.3 V	1.8 V
ON Semiconductor AP0100AT2L00XUGA0-DR1	AEC-Q100	100-VFBGA (7x7)	Automotive	100-VFBGA	3.3 V	1.8 V
ON Semiconductor AP0100AT2L00XUGA0-AM-DR1		100-VFBGA (7x7)		100-VFBGA	3.3 V	1.8 V	Surface Mount	Processor	NTSC Pal SMPTE	Professional Video	GPIO Serial
ON Semiconductor AP0100CS2L00SUGA0-DR1		100-VFBGA (7x7)		100-VFBGA	3.3 V	1.8 V

Catalog

Image Signal Processor, 1 MP

Key Features

• High Dynamic Range

Description

AP0100AT is a dedicated automotive image co-processor that enables flexible camera platforms using high performance ON Semiconductor megapixel high dynamic range (HDR) sensors. The two-chip solution of sensor and co-processor allows for multiple camera price and performance points with re-use of circuit board design, fast time to market and design flexibility. Sensor performance is enhanced by the reduction in heat resulting from a separate co-processor chip while at the same time enabling high performance features. The AP0100AT supports 185-degree fisheye lens distortion correction, perspective correction and multiple view options such as split side view, triptych and trailer hitch. This co-processor works with ON Semiconductor's AR0132AT and AR0140AT HDR automotive sensors, and is ideal for NTSC/PAL backup cameras.
