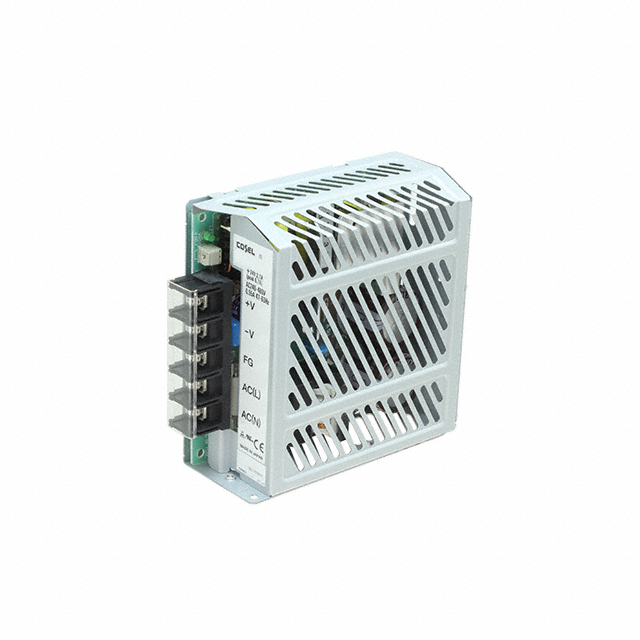

FCA50F Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
AC/DC DIN RAIL SUPPLY 24V 50W
| Part | Number of Outputs | Voltage - Isolation | Voltage - Output 1 | Applications | Input Type | Approval Agency | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Power (Watts) | Current - Output (Max) [Max] | DC Voltage - Input (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | DC Voltage - Input (Min) [Min] | AC Voltage - Input [Min] | AC Voltage - Input [Max] | Mounting Type | Type | Features | Current - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | 1 | 3000 V | 24 V | ITE (Commercial) | AC or DC | CE cURus TUV | 4.92 in | 5 in | 125 mm | 5 in | 150 mm | 5.91 in | 50 W | 2.1 A | 746 V | -10 °C | 60 °C | 265 V | 187 VAC | 528 VAC | ||||||
 Cosel USA, Inc. | 1 | 3000 V | 24 V | ITE (Commercial) | CE cURus TUV | 4.92 in | 5 in | 125 mm | 5 in | 150 mm | 5.91 in | 50 W | -10 °C | 60 °C | Chassis Mount | Enclosed | DC Input Capable | 2.1 A | 187 VAC 265 VDC | 528 VAC 746 VDC | ||||||
Cosel USA, Inc. | 1 | 3000 V | 24 V | ITE (Commercial) | CE cURus TUV | 4.92 in | 5 in | 125 mm | 5 in | 150 mm | 5.91 in | 50 W | -10 °C | 60 °C | Chassis Mount | Conformal Coated Enclosed | DC Input Capable | 2.1 A | 187 VAC 265 VDC | 528 VAC 746 VDC | ||||||
Cosel USA, Inc. | 1 | 3000 V | 24 V | ITE (Commercial) | AC or DC | CE cURus TUV | 4.92 in | 5 in | 125 mm | 5 in | 150 mm | 5.91 in | 50 W | 2.1 A | 746 V | -10 °C | 60 °C | 265 V | 187 VAC | 528 VAC |
