50A02SS Series

Bipolar Transistor, -50V, -0.4A, Low VCE(sat), PNP Single SSFP

Catalog

Bipolar Transistor, -50V, -0.4A, Low VCE(sat), PNP Single SSFP

Part	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Package / Case	Vce Saturation (Max) @ Ib, Ic	Frequency - Transition	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Transistor Type	Current - Collector Cutoff (Max) [Max]	Operating Temperature	Power - Max [Max]	Supplier Device Package

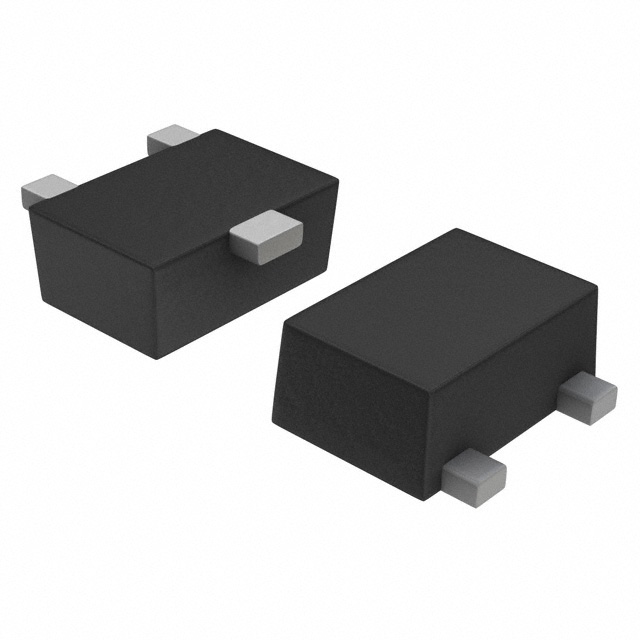

ON Semiconductor 50A02SS-TL-E	200	SC-81	120 mV	690 MHz	400 mA	50 V	Surface Mount	PNP	100 nA	150 °C	200 mW	3-SSFP

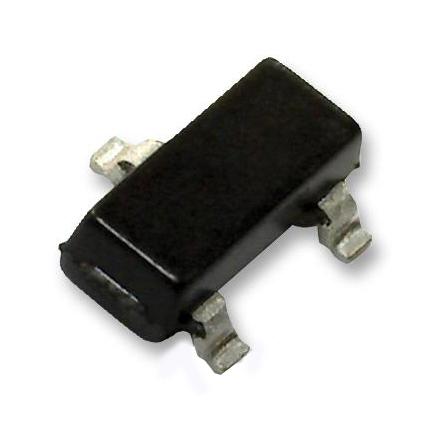

ON Semiconductor 50A02CH-TL-E	200	SC-59 SOT-23-3 TO-236-3	120 mV	690 MHz	500 mA	50 V	Surface Mount	PNP	100 nA	150 °C	700 mW	3-CPH

Bipolar Transistor, -50V, -0.4A, Low VCE(sat), PNP Single SSFP

• Large current capacity

• Low collector-to-emitter saturation voltage (resistance) : RCE(sat) typ=210mΩ [IC=0.5A, IB=50mA]

• Ultrasmall package facilitates miniaturization in end products

• Small ON-resistance (Ron)

50A02SS is Bipolar Transistor, -50V, -0.4A, Low VCE(sat), PNP Single SSFP for Low-Frequency General-Purpose Amplifi er Applications.
