6002-7051 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

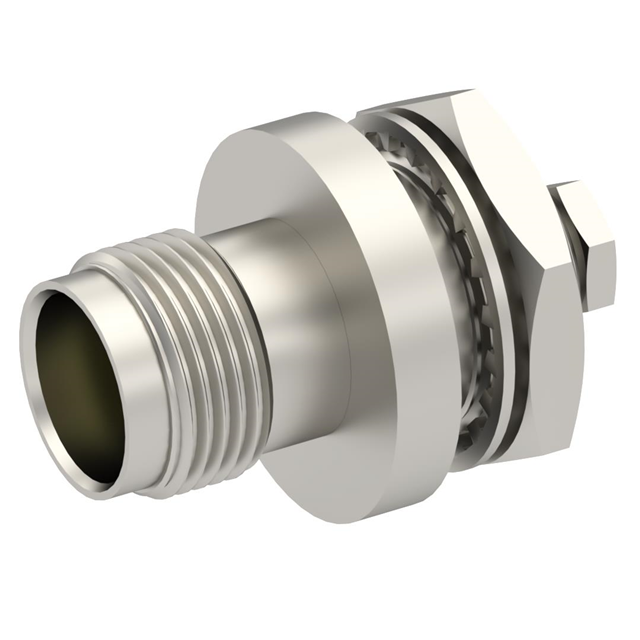

TNC F STR BHD CL 2.6/50S
| Part | Center Contact Plating | Dielectric Material | Includes | Insertion Loss | Body Material | Mating Cycles | Voltage Rating | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Material | Cable Group | Cable Group | Shield Termination | Contact Termination | Connector Style | Mounting Type | Impedance | Frequency - Max [Max] | Mounting Feature | Fastening Type | Housing Color | Connector Type | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Gasket 1 Lockwasher 1 Nut | 0.18 dB | Brass | 500 | 500 V | Nickel | -65 ░C | 165 °C | Beryllium Copper | RG-174 | 316 | Clamp | Solder | TNC | Panel Mount | 50 Ohms | 11 GHz | Bulkhead - Rear Side Nut | Threaded | Silver | Female Socket Jack | 1 |
