H7ET-N Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

COUNTER LCD 7 CHAR PANEL MOUNT

Part	Number of Characters Per Row	Display Type	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Display Characters - Height	Display Characters - Height	Time Format	Ingress Protection	Voltage - Supply	Termination Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Type	Reset	Operating Mode	Input Type	Weight	Weight	Time Format	Voltage - Supply

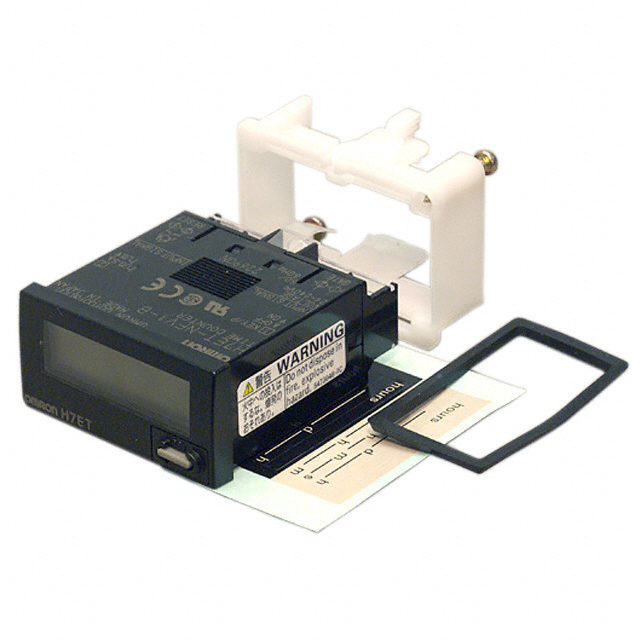

Omron Electronics Inc-EMC Div H7ET-NFV1-B	7	LCD - Black Characters	55 °C	-10 °C	0.338 in	8.6 mm	59 min 59 sec 59.9 min 999 hrs 9999 hrs	IP66	None Required (Battery Included)	Screw Terminal	22.2 mm	45 mm	Time Counter (Hour Meter)	External Front Panel	Up	Voltage

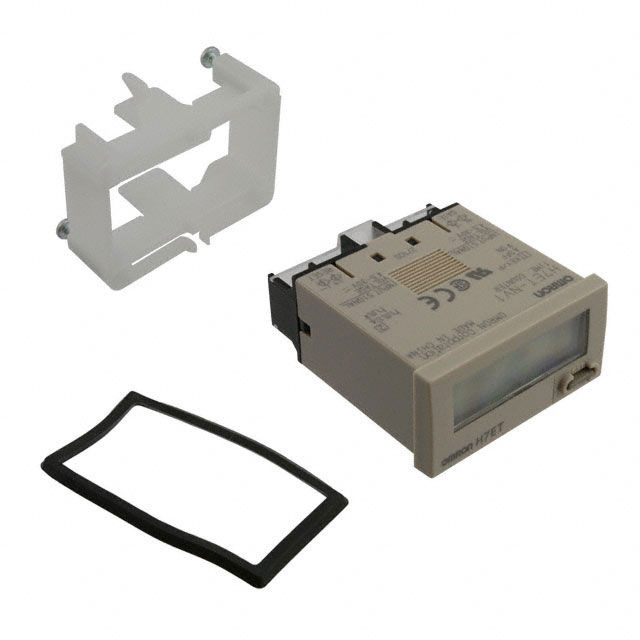

Omron Electronics Inc-EMC Div H7ET-NV1	7	LCD - Black Characters	55 °C	-10 °C	0.338 in	8.6 mm	59 min 59 sec 59.9 min 999 hrs 9999 hrs	IP66	None Required (Battery Included)	Screw Terminal	22.2 mm	45 mm	Time Counter (Hour Meter)	External Front Panel	Up	Voltage	0.132 lb	59.87 g
Omron Electronics Inc-EMC Div H7ET-NFV1	7	LCD - Black Characters	55 °C	-10 °C	0.338 in	8.6 mm	59 min 59 sec 59.9 min 999 hrs 9999 hrs	IP66	None Required (Battery Included)	Screw Terminal	22.2 mm	45 mm	Time Counter (Hour Meter)	External Front Panel	Up	Voltage

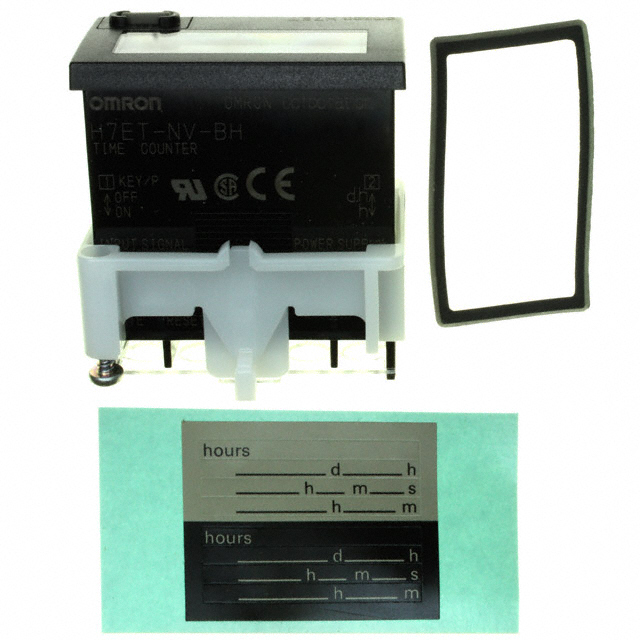

Omron Electronics Inc-EMC Div H7ET-NV-BH	7		55 °C	-10 °C	0.338 in	8.6 mm	999999.9 hrs	IP66	None Required	Screw Terminal	22.2 mm	45 mm	Time Counter (Hour Meter)	External Front Panel	Up	Voltage			3999day23.9hrs	24 VDC

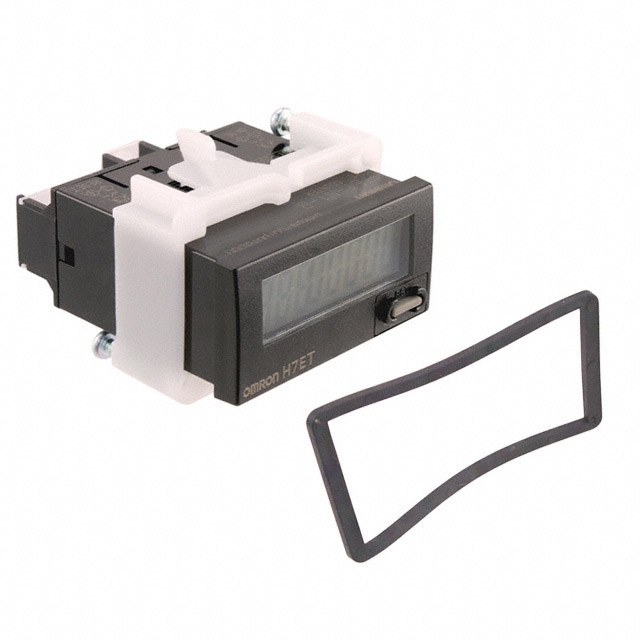

Omron Electronics Inc-EMC Div H7ET-N1-B	7	LCD - Black Characters	55 °C	-10 °C	0.338 in	8.6 mm	999999.9 hrs	IP66	None Required (Battery Included)	Screw Terminal	22.2 mm	45 mm	Time Counter (Hour Meter)	External Front Panel	Up	No Voltage			3999day23.9hrs
Omron Electronics Inc-EMC Div H7ET-N-B	7	LCD - Black Characters	55 °C	-10 °C	0.338 in	8.6 mm	999999.9 hrs	IP66	None Required (Battery Included)	Screw Terminal	22.2 mm	45 mm	Time Counter (Hour Meter)	External Front Panel	Up	No Voltage			3999day23.9hrs

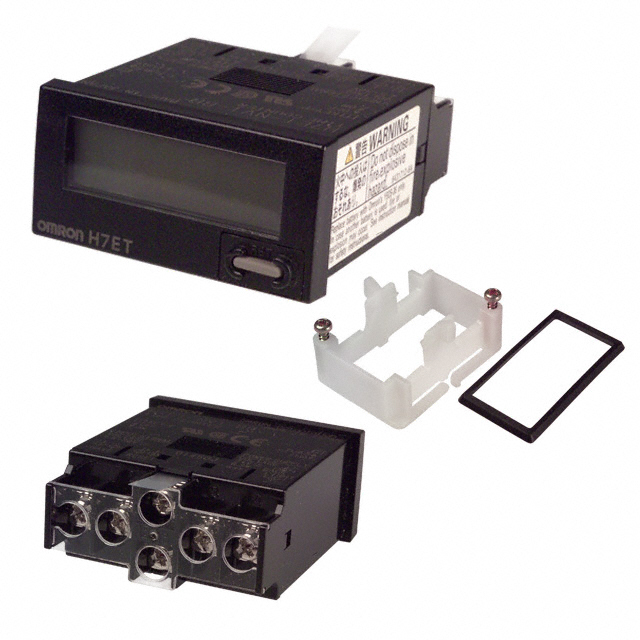

Omron Electronics Inc-EMC Div H7ET-NV1-BH	7		55 °C	-10 °C	0.338 in	8.6 mm	59 min 59 sec 59.9 min 999 hrs 9999 hrs	IP66	None Required	Screw Terminal	22.2 mm	45 mm	Time Counter (Hour Meter)	External Front Panel	Up	Voltage				24 VDC
Omron Electronics Inc-EMC Div H7ET-NFV	7	LCD - Black Characters	55 °C	-10 °C	0.338 in	8.6 mm	999999.9 hrs	IP66	None Required (Battery Included)	Screw Terminal	22.2 mm	45 mm	Time Counter (Hour Meter)	External Front Panel	Up	Voltage			3999day23.9hrs
