225664 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

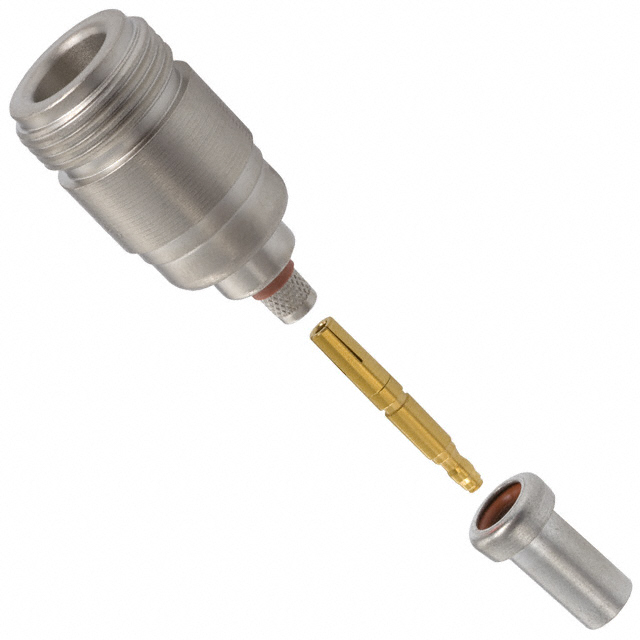

CONN N JACK STR 50 OHM CRIMP
| Part | Body Finish | Frequency - Max [Max] | Contact Termination | Connector Type | Voltage Rating | Center Contact Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Shield Termination | Mounting Type | Dielectric Material | Body Material | Number of Ports | Includes | Cable Group | Ingress Protection | Housing Color | Connector Style | Impedance | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Nickel | 11 GHz | Crimp | Female Socket Jack | 1000 VDC | Beryllium Copper | 500 | -65 ░C | 165 °C | Gold | Crimp | Free Hanging (In-Line) | Polytetrafluoroethylene (PTFE) | Brass | 1 | 1 Connector 1 Contact 1 Ferrule | 58C RG-58 | Weatherproof | Silver | N Type | 50 Ohms | |
TE Connectivity Raychem Cable Protection | Nickel | 11 GHz | Crimp | Female Socket Jack | 1000 VDC | Beryllium Copper | 500 | -65 ░C | 165 °C | Gold | Crimp | Free Hanging (In-Line) | Polytetrafluoroethylene (PTFE) | Brass | 1 | 1 Connector 1 Contact 1 Ferrule | RG-8 | Weatherproof | Silver | N Type | 50 Ohms | 213 |
