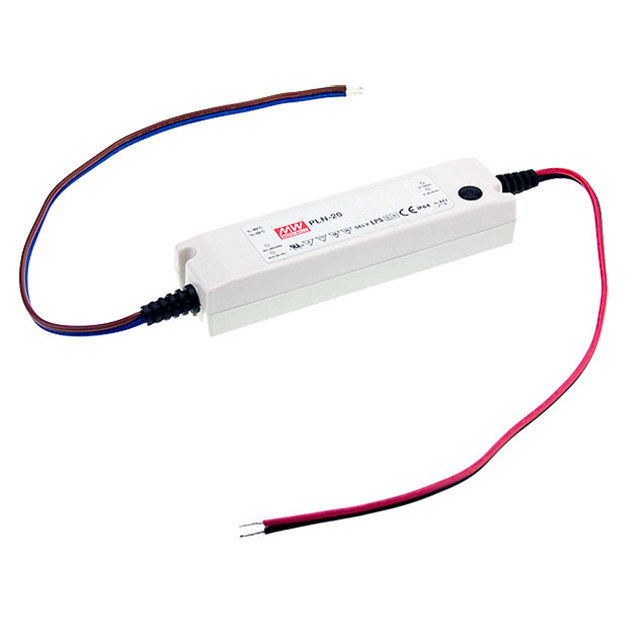

PLN-20 Series

Catalog

LED DRVR CC AC/DC 36-48V 420MA

Part	Mounting Type	Approval Agency	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Type	Topology	Voltage - Isolation	Voltage - Output [Max]	Voltage - Output [Min]	Efficiency	Features	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Number of Outputs	Termination Style	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)
MEAN WELL USA Inc. PLN-20-48	Chassis Mount	CB CE cURus PSE TUV	90 VAC	420 mA	Constant Current	AC DC Converter	3750 VDC	48 V	36 V	83.5 %	OCP OTP OVP SCP	277 VAC	-30 ░C	60 °C	IP64	1	Wire Leads	1.52 "	28 mm	38.5 mm	5.85 in	148.5 mm	1.1 in	20 W
MEAN WELL USA Inc. PLN-20-24	Chassis Mount	CB CE cURus PSE TUV	90 VAC	0.8 A	Constant Current	AC DC Converter	3750 VDC	24 V	18 V		OCP OTP OVP SCP	277 VAC	-30 ░C	60 °C	IP64	1	Wire Leads	1.52 "	28 mm	38.5 mm	5.85 in	148.5 mm	1.1 in	19 W
