1E Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Current Rating - Filter	Connector Type	Approval Agency	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type	Current Rating - Appliance Inlet	Connector Style	Filter Type	Termination	Termination	Termination	Panel Cutout Dimensions	Features	Current	Applications	Voltage - Rated AC	Termination Style	Configuration	Frequency - Operating [Max]	Frequency - Operating [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Inductance

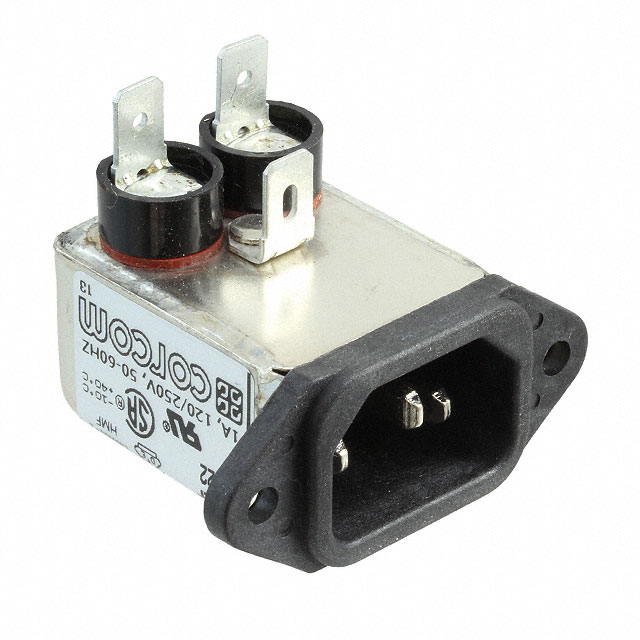

TE Connectivity Raychem Cable Protection 1EF2F	1 A	Male Blades Receptacle	CSA UL VDE	250 VAC	120 VAC	22.86 mm	30.48 mm	Flange Panel Mount Right Angle	1 A	IEC 320-C14	Filtered (EMI RFI) - Commercial	0.25 in	6.3 mm	Quick Connect

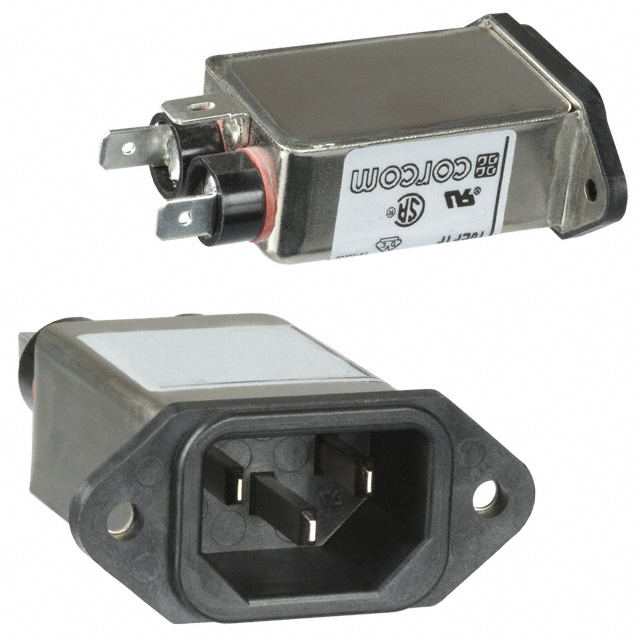

TE Connectivity Raychem Cable Protection 1EF1F	1 A	Male Blades Receptacle	CSA UL VDE	250 VAC	120 VAC			Flange Panel Mount	1 A	IEC 320-C14	Filtered (EMI RFI) - Commercial	0.25 in	6.3 mm	Quick Connect	Variable Size	Front or Rear Side Mount
TE Connectivity Raychem Cable Protection 1EDP			CSA UR VDE					Through Hole			Single Phase						1 A	General Purpose	250 V	PC Pins	Single Stage	60 Hz	50 Hz	-10 °C	40 °C
TE Connectivity Raychem Cable Protection 1EBS1	1 A	Male Blades Receptacle	CSA UL VDE	250 VAC	120 VAC			Panel Mount Snap-In	1 A	IEC 320-C14	Filtered (EMI RFI) - Commercial	0.25 in	6.3 mm	Quick Connect	Variable Size											1.73 mm	0.79 mm	0.031 "	0.068 in
TE Connectivity Raychem Cable Protection 1EEA2	1 A	Male Blades Receptacle	CSA UL VDE	250 VAC	120 VAC	22.86 mm	30.48 mm	Flange Panel Mount Right Angle	1 A	IEC 320-C14	Filtered (EMI RFI) - Commercial	0.25 in	6.3 mm	Quick Connect
TE Connectivity Raychem Cable Protection 1EBF1	1 A	Male Blades Receptacle	CSA UL VDE	250 VAC	120 VAC	25.65 mm	35.56 mm	Flange Panel Mount	1 A	IEC 320-C14	Filtered (EMI RFI) - Commercial	0.25 in	6.3 mm	Quick Connect

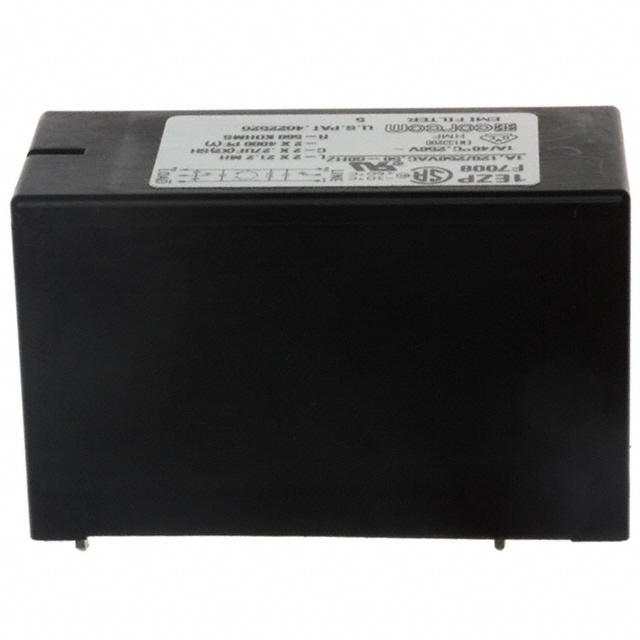

TE Connectivity Raychem Cable Protection 1EZP			CSA UR VDE					Through Hole			Single Phase						1 A	General Purpose	250 V	PC Pins	Single Stage	60 Hz	50 Hz	-10 °C	40 °C					21.2 mH

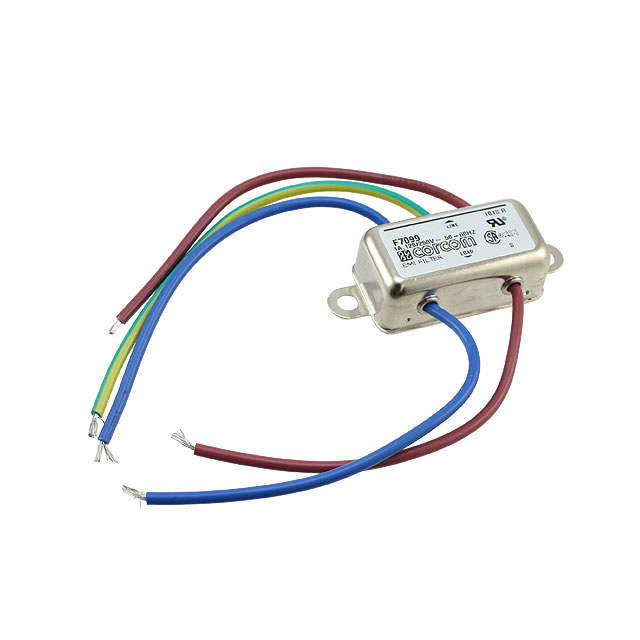

TE Connectivity Raychem Cable Protection 1EB3			CSA UR VDE					Chassis Mount			Single Phase						1 A	General Purpose	250 V	Wire Leads	Single Stage	60 Hz	50 Hz	-10 °C	40 °C					1.86 mH
