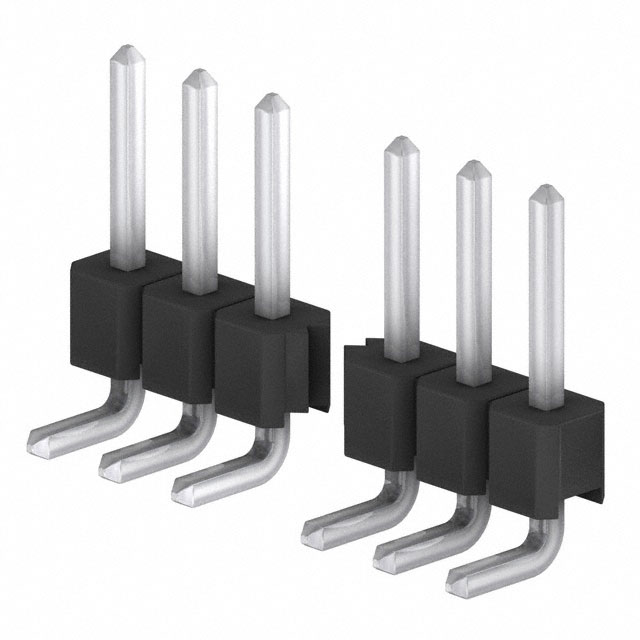

087897 Series

Manufacturer: Molex

Catalog

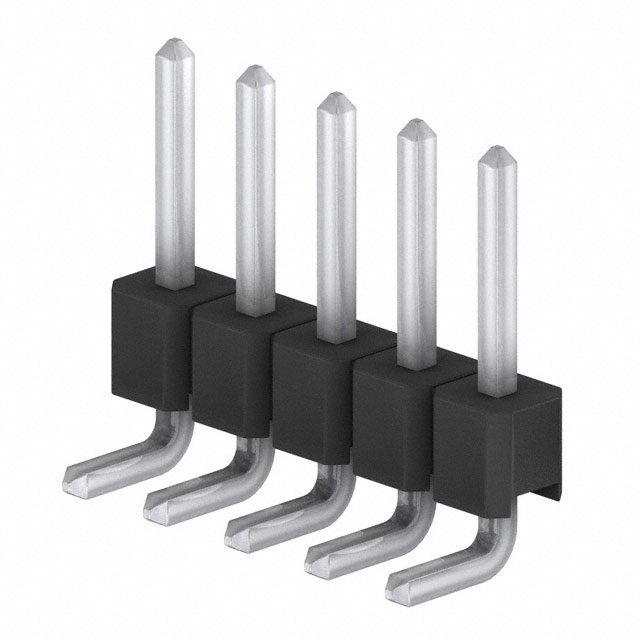

CONN HEADER R/A 5POS 2.54MM

Part	Contact Length - Post	Contact Length - Post	Style	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Insulation Height	Insulation Height	Number of Positions Loaded	Termination	Pitch - Mating	Pitch - Mating	Contact Shape	Connector Type	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Insulation Material	Material Flammability Rating	Applications	Contact Finish - Post	Contact Material	Shrouding	Contact Type	Contact Length - Mating [x]	Contact Length - Mating	Number of Positions	Current Rating (Amps)	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Mated Stacking Heights
Molex 0878970526	0.09 "	2.29 mm	Board to Board Cable	1	2.54 çm	100 çin	Through Hole Right Angle	2.51 mm	0.099 in	All	Solder	0.1 in	2.54 mm	Square	Breakaway Header	Black	2.54 µm	100 µin	Push-Pull	Thermoplastic	UL94 V-0	Automotive General Purpose Medical Telecommunications	Tin	Copper Alloy	Unshrouded	Male Pin	0.23 in	5.84 mm
Molex 0878974006	0.09 "	2.29 mm	Board to Board Cable	1	2.54 çm	100 çin	Through Hole Right Angle	2.51 mm	0.099 in	All	Solder	0.1 in	2.54 mm	Square	Breakaway Header	Black	2.54 µm	100 µin	Push-Pull	Thermoplastic	UL94 V-0	Automotive General Purpose Medical Telecommunications	Tin	Copper Alloy	Unshrouded	Male Pin	0.23 in	5.84 mm	40
Molex 0878970508			Board to Board Cable	1			Through Hole Right Angle	2.51 mm	0.099 in	All	Solder	0.1 in	2.54 mm	Square	Breakaway Header	Black			Push-Pull	Glass Filled Nylon Polyamide (PA)	UL94 V-0			Copper Alloy	Unshrouded	Male Pin
Molex 0878970326	0.09 "	2.29 mm	Board to Cable/Wire	1	2.54 çm	100 çin	Through Hole Right Angle			All	Solder	0.1 in	2.54 mm	Square	Header	Black	1 çm	39.4 çin	Push-Pull	Thermoplastic	UL94 V-0	General Purpose	Gold	Copper Alloy	Unshrouded	Male Pin				3 A	250 VDC	105 ░C	-55 °C	5 mm
