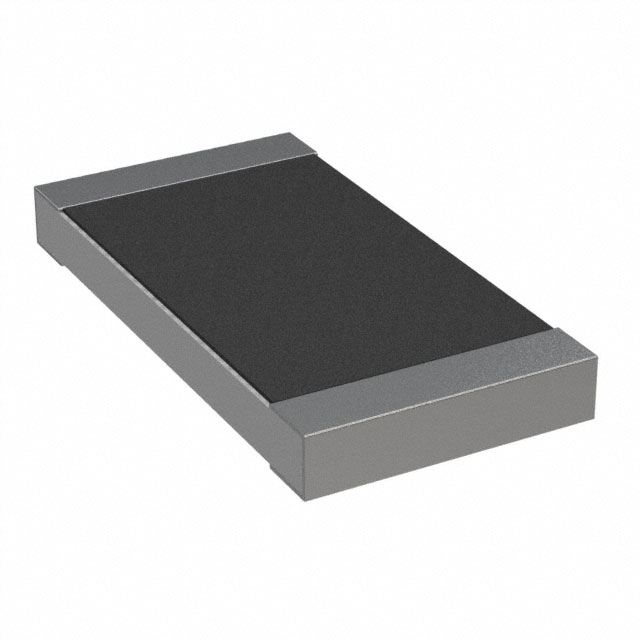

VSRP2512S1 Series

Catalog

RES 0.02 OHM 5% 1W 2512

Part	Package / Case	Ratings	Features	Operating Temperature [Max]	Operating Temperature [Min]	Number of Terminations [custom]	Temperature Coefficient	Supplier Device Package	Tolerance	Resistance	Height - Seated (Max) [Max]	Height - Seated (Max)	Composition	Power (Watts)	Package / Case	Temperature Coefficient
Delta Electronics/Cyntec VSRP2512S1-R020J	2512 2512 (6432 Metric)	AEC-Q200	Automotive AEC-Q200 Current Sense	155 C	-55 C	2	250 ppm/°C	2512	5 %	0.02 Ohms	0.031 in	0.8 mm	Thick Film	1 W	6332 Metric
Delta Electronics/Cyntec VSRP2512S1-R100F	2512 2512 (6432 Metric)	AEC-Q200	Automotive AEC-Q200 Current Sense	155 C	-55 C	2	100 ppm/°C	2512	1 %	0.1 Ohms	0.031 in	0.8 mm	Thick Film	1 W	6332 Metric
Delta Electronics/Cyntec VSRP2512S1-R600F	2512 (6432 Metric)	AEC-Q200	Automotive AEC-Q200 Current Sense	155 C	-55 C	2	100 ppm/°C	2512	1 %	600 mOhms	0.031 in	0.8 mm	Thick Film	1 W
Delta Electronics/Cyntec VSRP2512S1-R120F	2512 2512 (6432 Metric)	AEC-Q200	Automotive AEC-Q200 Current Sense	155 C	-55 C	2	100 ppm/°C	2512	1 %	0.12 Ohms	0.031 in	0.8 mm	Thick Film	1 W	6332 Metric
Delta Electronics/Cyntec VSRP2512S1-R200F	2512 2512 (6432 Metric)	AEC-Q200	Automotive AEC-Q200 Current Sense	155 C	-55 C	2	100 ppm/°C	2512	1 %	200 mOhms	0.031 in	0.8 mm	Thick Film	1 W	6332 Metric
Delta Electronics/Cyntec VSRP2512S1-R200J	2512 2512 (6432 Metric)	AEC-Q200	Automotive AEC-Q200 Current Sense	155 C	-55 C	2	100 ppm/°C	2512	5 %	200 mOhms	0.031 in	0.8 mm	Thick Film	1 W	6332 Metric
Delta Electronics/Cyntec VSRP2512S1-R500F	2512 2512 (6432 Metric)	AEC-Q200	Automotive AEC-Q200 Current Sense	155 C	-55 C	2	100 ppm/°C	2512	1 %	500 mOhms	0.031 in	0.8 mm	Thick Film	1 W	6332 Metric
Delta Electronics/Cyntec VSRP2512S1-R170J	2512 2512 (6432 Metric)	AEC-Q200	Automotive AEC-Q200 Current Sense	155 C	-55 C	2	100 ppm/°C	2512	5 %	170 mOhms	0.031 in	0.8 mm	Thick Film	1 W	6332 Metric
Delta Electronics/Cyntec VSRP2512S1-R600J	2512 2512 (6432 Metric)	AEC-Q200	Automotive AEC-Q200 Current Sense	155 C	-55 C	2	100 ppm/°C	2512	5 %	600 mOhms	0.031 in	0.8 mm	Thick Film	1 W	6332 Metric
Delta Electronics/Cyntec VSRP2512S1-R010F	2512 2512 (6432 Metric)	AEC-Q200	Automotive AEC-Q200 Current Sense	155 C	-55 C	2		2512	1 %	10 mOhms	0.031 in	0.8 mm	Thick Film	1 W	6332 Metric	±400ppm/°C
