WP3DP3 Series

Catalog

SENSOR PHOTO 940NM TOP VIEW RAD

Part	Viewing Angle	Operating Temperature [Max]	Operating Temperature [Min]	Wavelength	Power - Max [Max]	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Orientation	Current - Dark (Id) (Max) [Max]	Current - Collector (Ic) (Max) [Max]

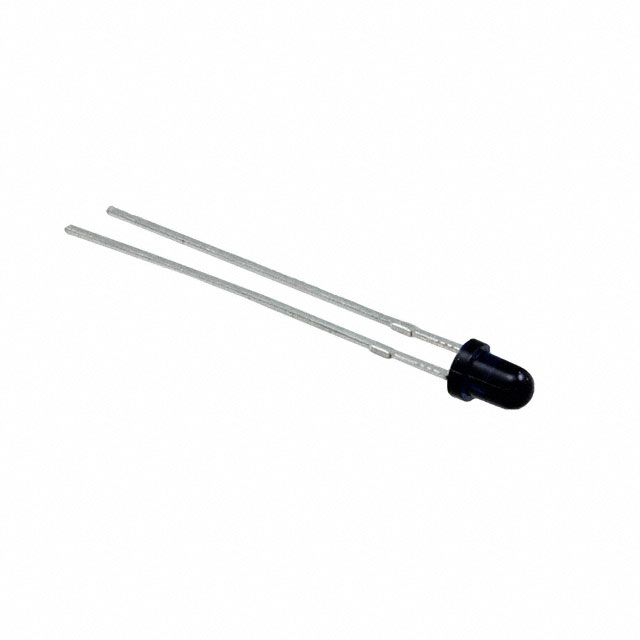

Kingbright WP3DP3BT/BD-P22	50 °	85 °C	-40 C	940 nm	100 mW	Through Hole	30 V	Radial	Top View	100 nA

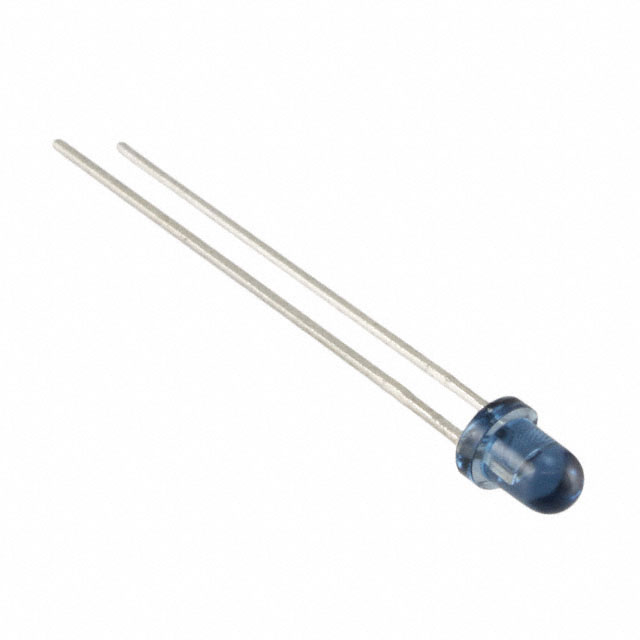

Kingbright WP3DP3BT		85 °C	-40 C		100 mW	Through Hole	30 V	Radial	Top View	100 nA	500 µA
