280381 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

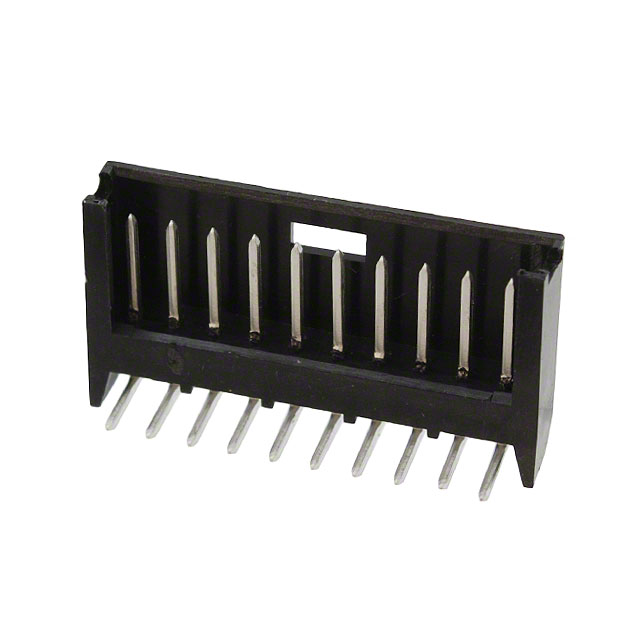

CONN HEADER R/A 10POS 2.54MM
| Part | Shrouding | Insulation Material | Style | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Length - Post | Contact Length - Post | Contact Length - Mating [custom] | Contact Length - Mating [custom] | Number of Positions | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Insulation Color | Number of Positions Loaded | Current Rating (Amps) | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Fastening Type | Contact Shape | Material Flammability Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mounting Type | Voltage Rating | Contact Type | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Shrouded - 3 Wall | Thermoplastic | Board to Board Cable | Brass | 118.1 µin | 3 µm | 3.5 mm | 0.138 in | 6.6 mm | 0.26 in | 10 | Header | -40 °C | 80 C | Solder | Black | All | 3 A | Tin | 0.1 in | 2.54 mm | 0.197 in | 5 mm | Detent Lock | Square | UL94 V-0 | 3 µm | 118.1 µin | Through Hole Right Angle | 40 V | Male Pin | 1 |
