305-060 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 60 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Part	Material - Insulation	Termination Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Mounting Type	Termination	Card Type	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Color	Number of Positions/Bay/Row	Gender	Read Out	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Number of Rows [custom]	Pitch	Pitch	Number of Positions	Contact Type	Flange Feature [diameter]	Flange Feature [diameter]	Features

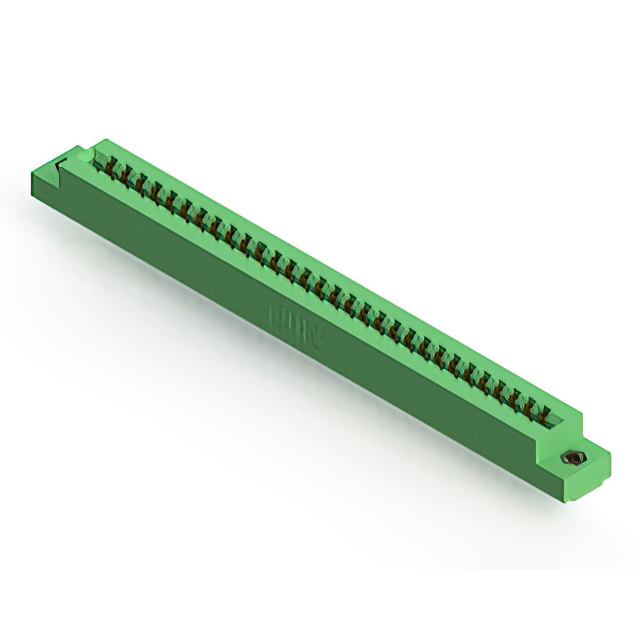

EDAC Inc. 305-060-521-207	Polyester Thermoplastic	2	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening	Panel Mount Through Hole	Solder	Non Specified - Dual Edge	Gold	-40 C	105 ░C	Green	30	Female	Dual	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	3.96 mm	0.156 in	60	Semi Bellows
EDAC Inc. 305-060-500-208	Polyester Thermoplastic	2	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	Panel Mount	Solder Eyelet(s)	Non Specified - Dual Edge	Gold	-40 C	105 ░C	Green	30	Female	Dual	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	3.96 mm	0.156 in	60	Semi Bellows

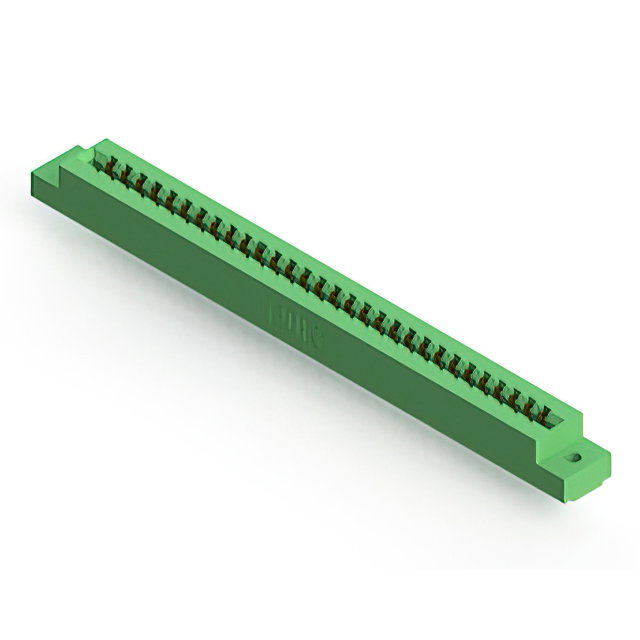

EDAC Inc. 305-060-521-502	Polyester Thermoplastic	2	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	Panel Mount Through Hole	Solder	Non Specified - Dual Edge	Gold	-40 C	105 ░C	Green	30	Female	Dual	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	3.96 mm	0.156 in	60	Semi Bellows	3.25 mm	0.128 "
EDAC Inc. 305-060-500-508	Polyester Thermoplastic	2	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	Panel Mount	Solder Eyelet(s)	Non Specified - Dual Edge	Gold	-40 C	105 ░C	Green	30	Female	Dual	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	3.96 mm	0.156 in	60	Semi Bellows
EDAC Inc. 305-060-500-504	Polyester Thermoplastic	2	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	Panel Mount	Solder Eyelet(s)	Non Specified - Dual Edge	Gold	-40 C	105 ░C	Green	30	Female	Dual	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	3.96 mm	0.156 in	60	Semi Bellows	3.96 mm	0.156 "

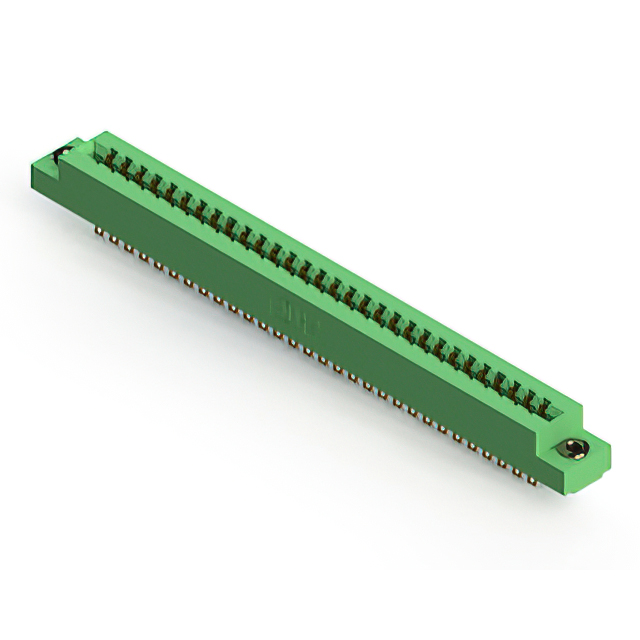

EDAC Inc. 305-060-555-503	Polyester Thermoplastic	2	0.25 Ám	10 Áin	Floating Bobbin Flush Mount	Board Edge Straddle Mount	Solder	Non Specified - Dual Edge	Gold	-40 C	105 ░C	Green	30	Female	Dual	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	3.96 mm	0.156 in	60	Semi Bellows	2.95 mm	0.116 "	Card Extender

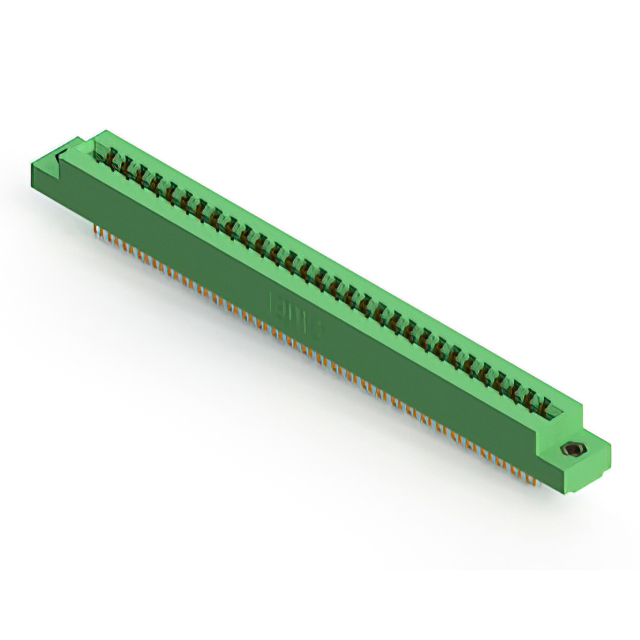

EDAC Inc. 305-060-500-207	Polyester Thermoplastic	2	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening	Panel Mount	Solder Eyelet(s)	Non Specified - Dual Edge	Gold	-40 C	105 ░C	Green	30	Female	Dual	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	3.96 mm	0.156 in	60	Semi Bellows
EDAC Inc. 305-060-521-208	Polyester Thermoplastic	2	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	Panel Mount Through Hole	Solder	Non Specified - Dual Edge	Gold	-40 C	105 ░C	Green	30	Female	Dual	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	3.96 mm	0.156 in	60	Semi Bellows

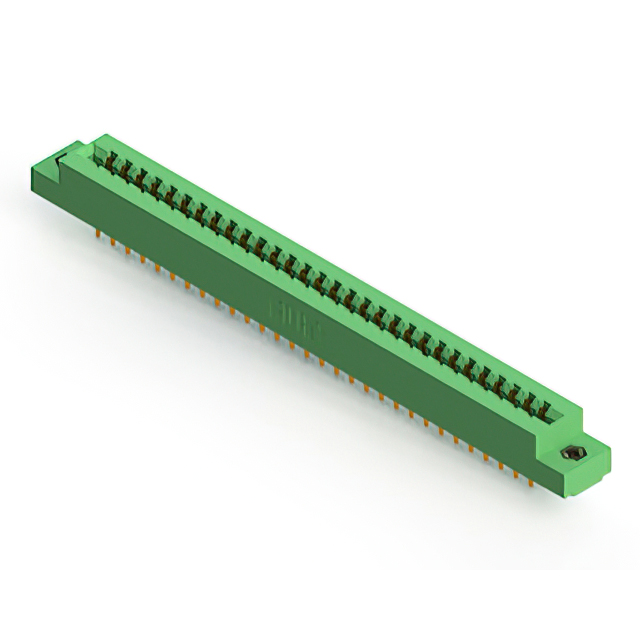

EDAC Inc. 305-060-520-508	Polyester Thermoplastic	2	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	Panel Mount Through Hole	Solder	Non Specified - Dual Edge	Gold	-40 C	105 ░C	Green	30	Female	Dual	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	3.96 mm	0.156 in	60	Semi Bellows

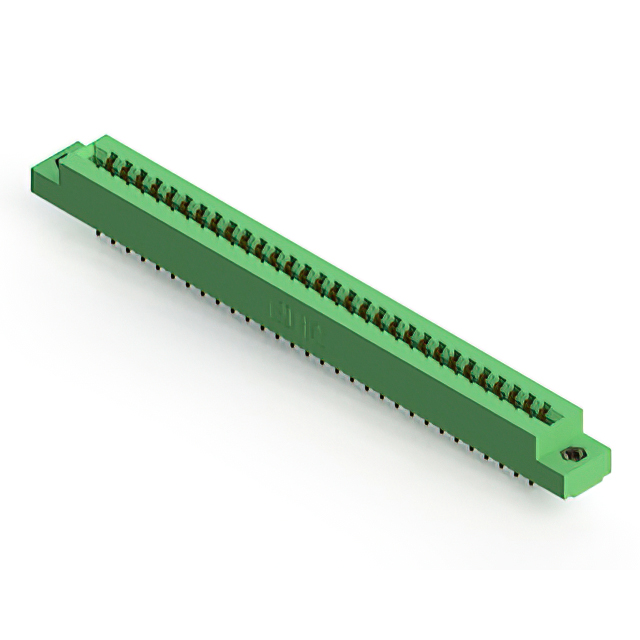

EDAC Inc. 305-060-556-508	Polyester Thermoplastic	2	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	Board Edge Straddle Mount	Solder	Non Specified - Dual Edge	Gold	-40 C	105 ░C	Green	30	Female	Dual	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	2	3.96 mm	0.156 in	60	Semi Bellows			Card Extender
