NSP8814 Series

Low Capacitance Surge Protection for High Speed Data Lines

Catalog

Low Capacitance Surge Protection for High Speed Data Lines

Part	Type	Unidirectional Channels [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Package / Case	Voltage - Breakdown (Min) [Min]	Capacitance @ Frequency	Mounting Type	Voltage - Reverse Standoff (Typ) [Max]	Supplier Device Package	Voltage - Clamping (Max) @ Ipp [Max]	Power Line Protection

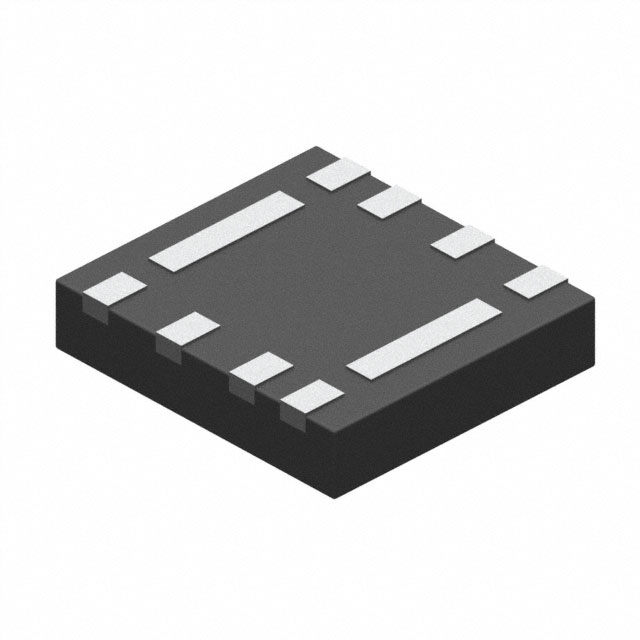

ON Semiconductor NSP8814MUTAG	Steering	4	125 ¯C	-55 °C	Ethernet	8-UDFN Exposed Pad	3.2 V	5 pF	Surface Mount	3 V	8-UDFN (2.2x2)	15 V

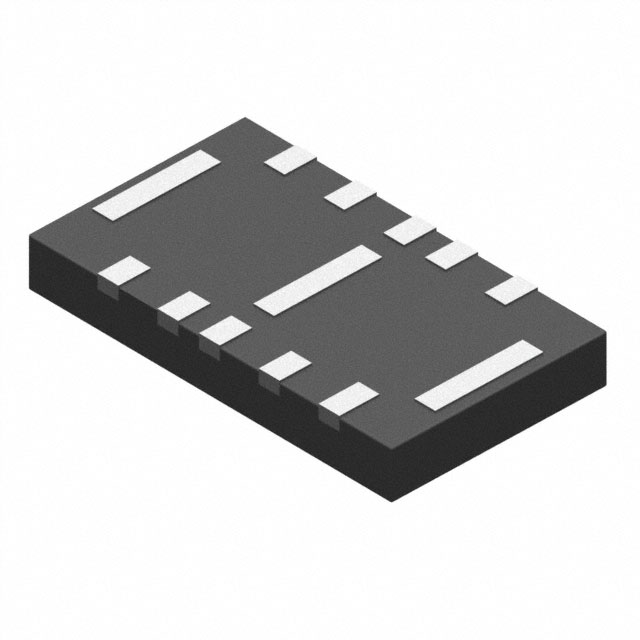

ON Semiconductor NSP8818MUTAG	Steering	8	125 ¯C	-55 °C	Ethernet	10-UDFN Exposed Pad	3.2 V	5 pF	Surface Mount	3 V	10-UDFN (3.5x2)	15 V

Catalog

Low Capacitance Surge Protection for High Speed Data Lines

Key Features

• Protection for the Following IEC Standards:IEC 61000−4−2 (ESD) ±30 kV (Contact)IEC61000−4−5 (Lightning) 35 A (8/20 µs)

• Flow−Thru Routing Scheme

• Low Capacitance: 2 pF Max, I/O to I/O

• UL Flammability Rating of 94 V−0

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Description

The NSP8814 and NSP8818 surge protection devices are designed specifically to protect 10/100 and GbE Ethernet signals from high levels of surge current. Low clamping voltage under high surge conditions make this device an ideal solution for protecting voltage sensitive lines leading to Ethernet transceiver chips. Low capacitance combined with flow-through style packaging allows for easy PCB layout and matched trace lengths necessary to maintain consistent impedance between high-speed differential lines. The integrated 4 and 8 lines of protection in flow-thru type packages offer a simplified solution with premier performance for 10/100 and GbE Ethernet applications.
