9883 Series
Manufacturer: Belden Inc.
Beta
⌘K

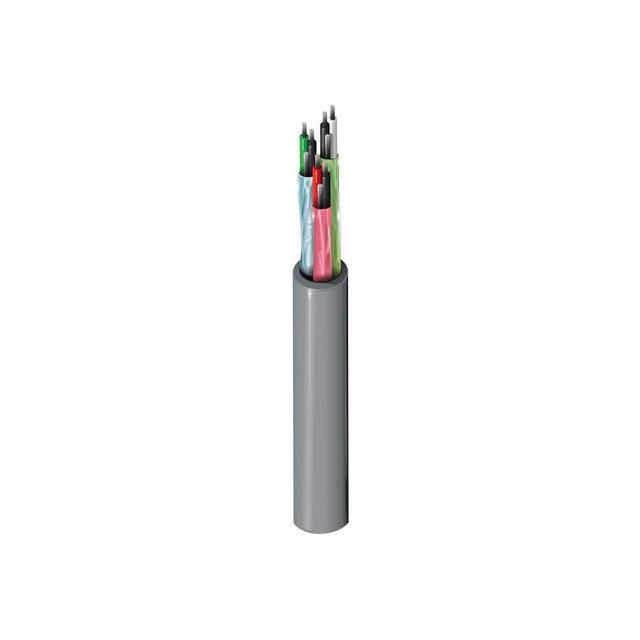

MULTI-PAIR 6COND 20AWG BLK
| Part | Shield Material | Shield Coverage | Conductor Material | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Jacket Color | Jacket (Insulation) Material | Features | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Shield Type | Usage | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Copper Tinned | 6 | 1.016 mm | 0.04 in | 20 AWG | Black | High Density Polyethylene (HDPE) | Drain Wire | 304.8 m | 1000 ft | 10 | 30 AWG | 80 °C | -40 C | Multi-Pair | Foil | Audio Control Instrumentation | Polypropylene (PP) | 8.64 mm | 0.34 " |
