MM74HC245A Series

Octal 3-State Non-Inverting Bus/Transceiver

Catalog

Octal 3-State Non-Inverting Bus/Transceiver

Part	Number of Bits per Element	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Mounting Type	Number of Elements	Package / Case [y]	Package / Case	Package / Case [x]	Output Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [y]	Grade	Qualification	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case
ON Semiconductor 74HC245DTR2G	8	2 V	6 V	7.8 mA	7.8 mA	Surface Mount	1	4.4 mm	20-TSSOP	0.173 in	3-State	20-TSSOP	125 °C	-55 °C

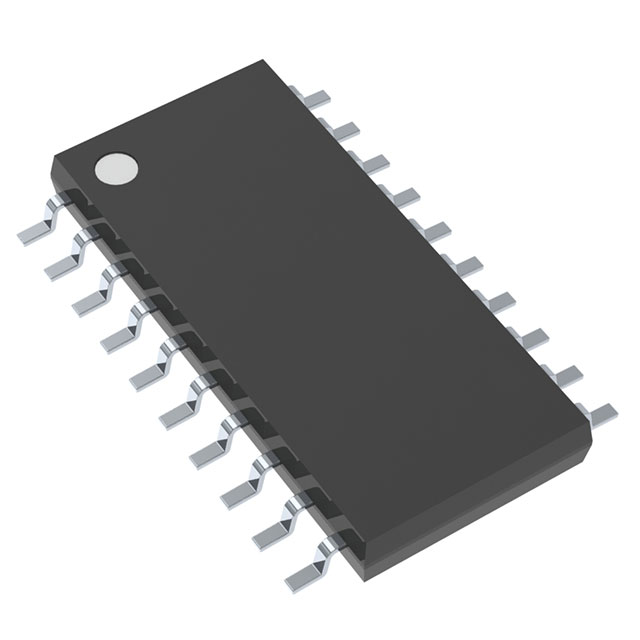

ON Semiconductor NLV74HC245ADWR2G	8	2 V	6 V	7.8 mA	7.8 mA	Surface Mount	1	0.295 in	20-SOIC		3-State	20-SOIC	125 °C	-55 °C	7.5 mm	Automotive	AEC-Q100
ON Semiconductor MC74HC245ADTR2	8	2 V	6 V	7.8 mA	7.8 mA	Surface Mount	1	4.4 mm	20-TSSOP	0.173 in	3-State	20-TSSOP	125 °C	-55 °C
ON Semiconductor MC74HC245ADWR2G	8	2 V	6 V	7.8 mA	7.8 mA	Surface Mount	1	0.295 in	20-SOIC		3-State	20-SOIC	125 °C	-55 °C	7.5 mm
ON Semiconductor MC74HC245ADW	8	2 V	6 V	7.8 mA	7.8 mA	Surface Mount	1	0.295 in	20-SOIC		3-State	20-SOIC	125 °C	-55 °C	7.5 mm
ON Semiconductor NLV74HC245ADTR2G	8	2 V	6 V	7.8 mA	7.8 mA	Surface Mount	1	4.4 mm	20-TSSOP	0.173 in	3-State	20-TSSOP	125 °C	-55 °C		Automotive	AEC-Q100
ON Semiconductor MM74HC245AMTC	8	2 V	6 V	7.8 mA	7.8 mA	Surface Mount	1	4.4 mm	20-TSSOP	0.173 in	3-State	20-TSSOP						85 °C	-40 °C
ON Semiconductor MC74HC245ANG	8	2 V	6 V	7.8 mA	7.8 mA	Through Hole	1		20-DIP		3-State	20-PDIP	125 °C	-55 °C						7.62 mm	0.3 in
ON Semiconductor MC74HC245AFG	8	2 V	6 V	7.8 mA	7.8 mA	Surface Mount	1		20-SOIC		3-State	SOEIAJ-20	125 °C	-55 °C						5.3 mm	0.209 "
ON Semiconductor MM74HC245AMTCX	8	2 V	6 V	7.8 mA	7.8 mA	Surface Mount	1	4.4 mm	20-TSSOP	0.173 in	3-State	20-TSSOP						85 °C	-40 °C

Catalog

Octal 3-State Non-Inverting Bus/Transceiver

Key Features

• Output Drive Capability: 15 LSTTL Loads

• Outputs Directly Interface to CMOS, NMOS, and TTL

• Operating Voltage Range: 2 to 6 V

• Low Input Current: 1mA

• High Noise Immunity Characteristic of CMOS Devices

• In Compliance with the Requirements Defined by JEDEC Standard No. 7A

• Chip Complexity: 308 FETs or 77 Equivalent Gates

• Pb-Free Packages are Available

Description

The MM74HC245A 3-STATE bidirectional buffer utilizes advanced silicon-gate CMOS technology, and is intended for two-way asynchronous communication between data buses. It has high drive current outputs which enable high speed operation even when driving large bus capacitances. This circuit possesses the low power consumption and high noise immunity usually associated with CMOS circuitry, yet has speeds comparable to low power Schottky TTL circuits. This device has an active LOW enable input G# and a direction control input, DIR. When DIR is HIGH, data flows from the A inputs to the B outputs. When DIR is LOW, data flows from the B inputs to the A outputs. The MM74HC245A transfers true data from one bus to the other. This device can drive up to 15 LS-TTL Loads, and does not have Schmitt trigger inputs. All inputs are protected from damage due to static discharge by diodes to VCCand ground.
