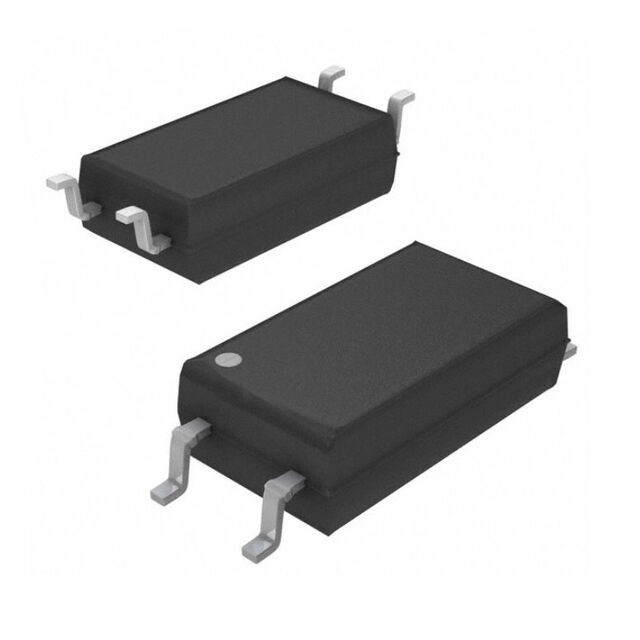

TLP383 Series
Manufacturer: Toshiba Semiconductor and Storage
Beta
⌘K
ISOLATORS AND SOLID STATE RELAYS FOR ENHANCED SAFETY AND EFFICIENCY | TOSHIBA, PHOTOCOUPLER (PHOTOTRANSISTOR OUTPUT), DC INPUT, 5000 VRMS, 4PIN SO6L
| Part | Package / Case | Current Transfer Ratio (Max) [Max] | Supplier Device Package | Input Type | Voltage - Forward (Vf) (Typ) | Mounting Type | Number of Channels [custom] | Vce Saturation (Max) [Max] | Rise / Fall Time (Typ) | Turn On / Turn Off Time (Typ) | Output Type | Package / Case [custom] | Package / Case | Current Transfer Ratio (Min) | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output / Channel [custom] | Current - DC Forward (If) (Max) [Max] | Current Transfer Ratio (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Toshiba Semiconductor and Storage | 6-SOIC 6-SOIC (0.173" 4.40mm Width) 4 Leads | 600 % | 6-SO 4 Lead | DC | 1.25 V | Surface Mount | 1 | 300 mV | 2 µs 3 µs | 3 µs | Transistor | 7.5 mm | 0.295 " 4 PC Pad | 200 % | -55 C | 125 °C | 50 mA | 50 mA | |
 Toshiba Semiconductor and Storage | 6-SOIC | 600 % | 6-SO 4 Lead | DC | 1.25 V | Surface Mount | 1 | 300 mV | 2 µs 3 µs | 3 µs | Transistor | 7.5 mm | 0.295 " 4 PC Pad | -55 C | 125 °C | 50 mA | 50 mA | 100 % | |
Toshiba Semiconductor and Storage | 6-SOIC 6-SOIC (0.173" 4.40mm Width) 4 Leads | 600 % | 6-SO 4 Lead | DC | 1.25 V | Surface Mount | 1 | 300 mV | 2 µs 3 µs | 3 µs | Transistor | 7.5 mm | 0.295 " 4 PC Pad | -55 C | 125 °C | 50 mA | 50 mA | 100 % | |
 Toshiba Semiconductor and Storage | 6-SOIC 6-SOIC (0.173" 4.40mm Width) 4 Leads | 600 % | 6-SO 4 Lead | DC | 1.25 V | Surface Mount | 1 | 300 mV | 2 µs 3 µs | 3 µs | Transistor | 7.5 mm | 0.295 " 4 PC Pad | 50 % | -55 C | 125 °C | 50 mA | 50 mA | |
Toshiba Semiconductor and Storage | 6-SOIC | 300 % | 6-SO 4 Lead | DC | 1.25 V | Surface Mount | 1 | 300 mV | 2 µs 3 µs | 3 µs | Transistor | 7.5 mm | 0.295 " 4 PC Pad | -55 C | 125 °C | 50 mA | 50 mA | 100 % |
