054548 Series

Manufacturer: Molex

Catalog

CONN FFC BOTTOM 26POS 0.5MM R/A

Part	Number of Positions	Material Flammability Rating	Flat Flex Type	Connector/Contact Type	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Actuator Material	Locking Feature	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Cable End Type	Current Rating (Amps)	Mounting Type	Contact Finish	Mating Cycles	FFC, FCB Thickness	Contact Material	Features	Housing Material	Contact Finish Thickness	Contact Finish Thickness	Housing Color	Actuator Color
Molex 0545482672	26	UL94 V-0	FFC FPC	Contacts Bottom	0.5 mm	0.02 in	0.047 "	1.2 mm	Polyphenylene Sulfide (PPS)	Slide Lock	Solder	85 °C	-20 C	50 V	Straight Tapered	0.5 A	Surface Mount Right Angle	Gold	20	0.3 mm	Phosphor Bronze	Solder Retention Zero Insertion Force (ZIF)	Liquid Crystal Polymer (LCP)
Molex 0545481370	13	UL94 V-0	FFC FPC	Contacts Bottom	0.5 mm	0.02 in	0.047 "	1.2 mm	Polyphenylene Sulfide (PPS)	Flip Lock	Solder	85 °C	-20 C	50 V	Straight Tapered	0.5 A	Surface Mount Right Angle	Tin Bismuth		0.3 mm	Phosphor Bronze	Solder Retention Zero Insertion Force (ZIF)	Liquid Crystal Polymer (LCP)	8 çin	0.203 çm
Molex 0545482272	22 positions	UL94 V-0	FFC FPC	Contacts Bottom	0.5 mm	0.02 in	0.047 "	1.2 mm	Polyphenylene Sulfide (PPS)	Slide Lock	Solder	85 °C	-20 C	50 V	Straight Tapered	0.5 A	Surface Mount Right Angle	Gold	20	0.3 mm	Phosphor Bronze	Solder Retention Zero Insertion Force (ZIF)	Liquid Crystal Polymer (LCP)

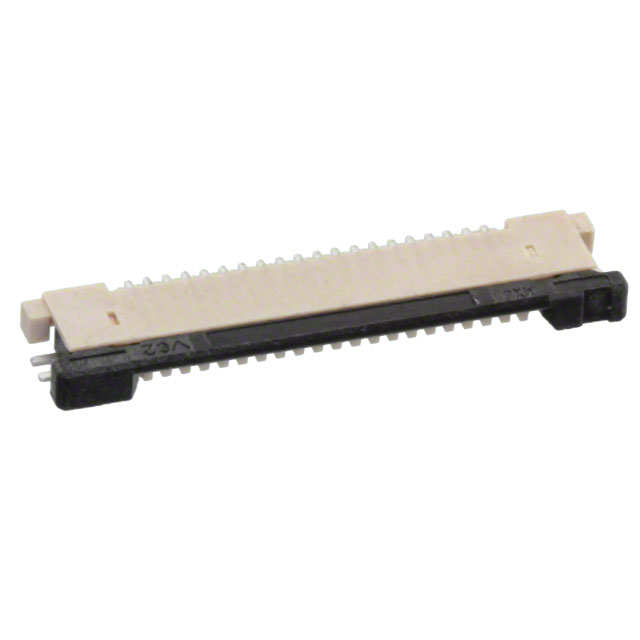

Molex 0545482033	20	UL94 V-0	FFC FPC	Contacts Bottom	0.5 mm	0.02 in	0.047 "	1.2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	Solder	85 °C	-20 C	50 V	Straight Tapered		Surface Mount Right Angle	Tin Bismuth	20	0.3 mm	Phosphor Bronze	Solder Retention Zero Insertion Force (ZIF)	Liquid Crystal Polymer (LCP) Glass Filled	39.4 Áin	1 Ám	White	Black
Molex 0545480772	7	UL94 V-0	FFC FPC	Contacts Bottom	0.5 mm	0.02 in	0.047 "	1.2 mm	Polyphenylene Sulfide (PPS)	Slide Lock	Solder	85 °C	-20 C	50 V	Straight Tapered	0.5 A	Surface Mount Right Angle	Gold	20	0.3 mm	Phosphor Bronze	Solder Retention Zero Insertion Force (ZIF)	Liquid Crystal Polymer (LCP)
Molex 0545481470	14	UL94 V-0	FFC FPC	Contacts Bottom	0.5 mm	0.02 in	0.047 "	1.2 mm	Polyphenylene Sulfide (PPS)	Flip Lock	Solder	85 °C	-20 C	50 V	Straight Tapered	0.5 A	Surface Mount Right Angle	Tin Bismuth		0.3 mm	Phosphor Bronze	Solder Retention Zero Insertion Force (ZIF)	Liquid Crystal Polymer (LCP)	8 çin	0.203 çm

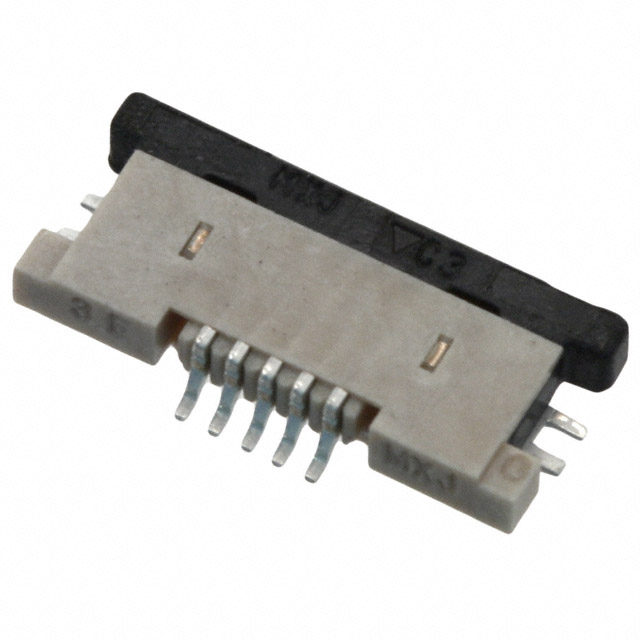

Molex 0545480570		UL94 V-0	FFC FPC	Contacts Bottom	0.5 mm	0.02 in	0.047 "	1.2 mm	Polyphenylene Sulfide (PPS)	Flip Lock	Solder	85 °C	-20 C	50 V	Straight Tapered	0.5 A	Surface Mount Right Angle	Tin Bismuth		0.3 mm	Phosphor Bronze	Solder Retention Zero Insertion Force (ZIF)	Liquid Crystal Polymer (LCP)	8 çin	0.203 çm
Molex 0545481433	14	UL94 V-0	FFC FPC	Contacts Bottom	0.5 mm	0.02 in	0.047 "	1.2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	Solder	85 °C	-20 C	50 V	Straight Tapered		Surface Mount Right Angle	Tin Bismuth	20	0.3 mm	Phosphor Bronze	Solder Retention Zero Insertion Force (ZIF)	Liquid Crystal Polymer (LCP) Glass Filled	39.4 Áin	1 Ám	White	Black
Molex 0545481334	13	UL94 V-0	FFC FPC	Contacts Bottom	0.5 mm	0.02 in	0.047 "	1.2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	Solder	85 °C	-20 C	50 V	Straight Tapered	0.5 A	Surface Mount Right Angle	Tin Bismuth	20	0.3 mm	Phosphor Bronze	Solder Retention Zero Insertion Force (ZIF)	Liquid Crystal Polymer (LCP) Glass Filled	39.4 Áin	1 Ám	White	Black
Molex 0545482633	26	UL94 V-0	FFC FPC	Contacts Bottom	0.5 mm	0.02 in	0.047 "	1.2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	Solder	85 °C	-20 C	50 V	Straight Tapered		Surface Mount Right Angle	Tin Bismuth	20	0.28 mm	Phosphor Bronze	Solder Retention Zero Insertion Force (ZIF)	Liquid Crystal Polymer (LCP) Glass Filled	39.4 Áin	1 Ám	White	Black
