113R Series

Manufacturer: Serpac

Catalog

BOX ABS BLACK 3.6"L X 2.25"W

Part	Weight	Weight	Color	Material Flammability Rating	Container Type	Design	Height [z]	Height [z]	Features	Thickness	Thickness	Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Area (L x W) [custom]	Area (L x W) [custom]	Ratings	Area (L x W)	Area (L x W)

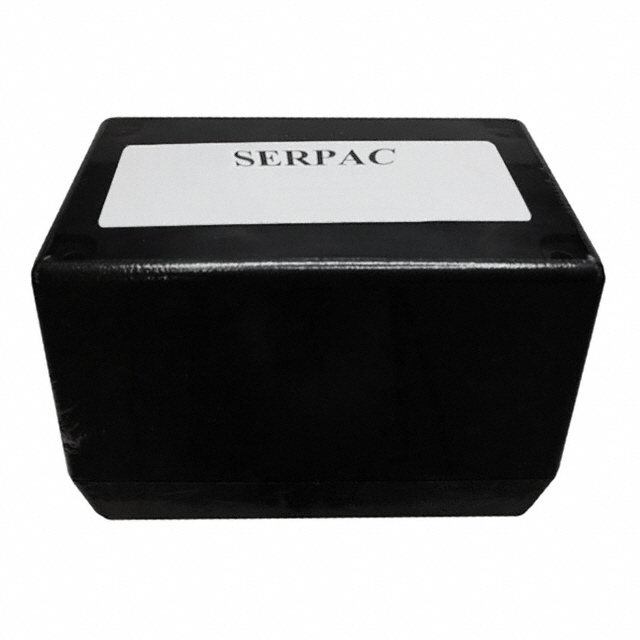

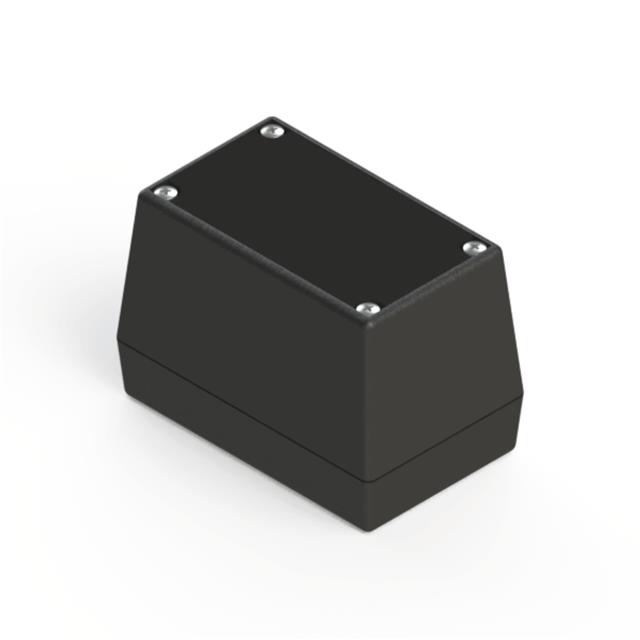

Serpac 113RI,BK	0.172 lb	78.02 g	Black	UL94 HB	Box	Hand Held Split Sides	2.5 in	63.5 mm	Front Access PCB Supports	2.54 mm	0.1 in	ABS Plastic	2.25 in	3.6 "	57.15 mm	91.44 mm	8.1 in²	52.3 cm²	IP40 NEMA 1

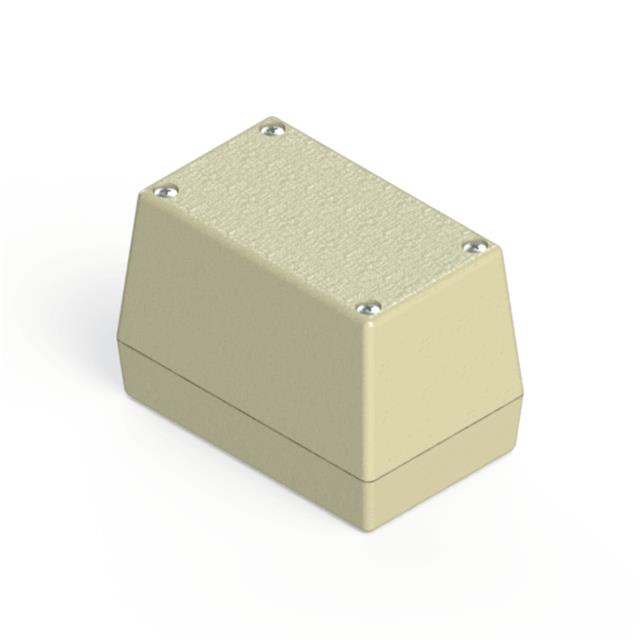

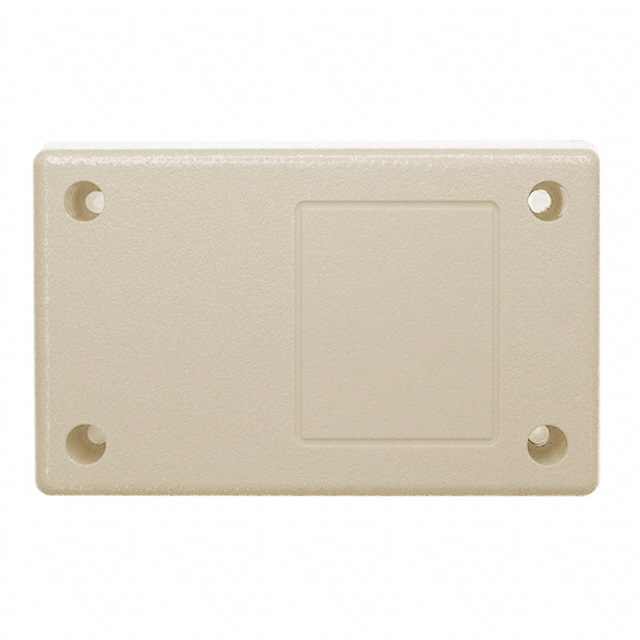

Serpac 113R,AL	0.172 lb	78.02 g	Almond	UL94 HB	Box	Hand Held Split Sides	2.5 in	63.5 mm	Front Access PCB Supports	2.54 mm	0.1 in	ABS Plastic	2.25 in	3.6 "	57.15 mm	91.44 mm	8.1 in²	52.3 cm²	IP40 NEMA 1	8.1 in²	52.3 cm²

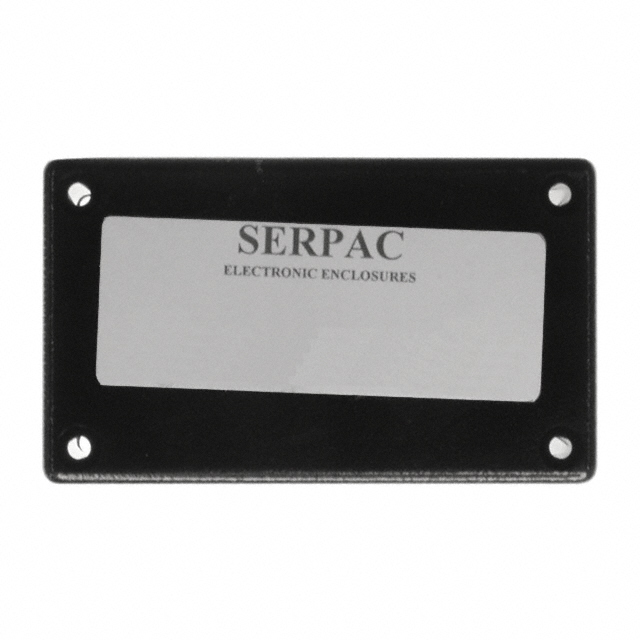

Serpac 113R,BK	0.172 lb	78.02 g	Black	UL94 HB	Box	Hand Held Split Sides	2.5 in	63.5 mm	Front Access PCB Supports	2.54 mm	0.1 in	ABS Plastic	2.25 in	3.6 "	57.15 mm	91.44 mm	8.1 in²	52.3 cm²	IP40 NEMA 1

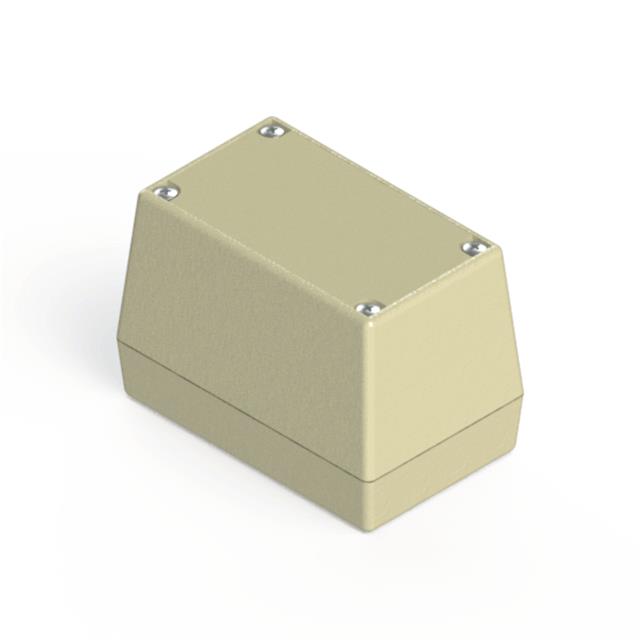

Serpac 113RI,AL	0.172 lb	78.02 g	Almond	UL94 HB	Box	Hand Held Split Sides	2.5 in	63.5 mm	Front Access PCB Supports	2.54 mm	0.1 in	ABS Plastic	2.25 in	3.6 "	57.15 mm	91.44 mm	8.1 in²	52.3 cm²	IP40 NEMA 1	8.1 in²	52.3 cm²
