DDR-240 Series

Catalog

DC/DC DIN RAIL SUPPLY 24V 240W

Part	Voltage - Output 1	Power (Watts)	Number of Outputs	DC Voltage - Input (Min) [Min]	Features	DC Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Input Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Approval Agency	Applications	Voltage - Isolation	Current - Output (Max)

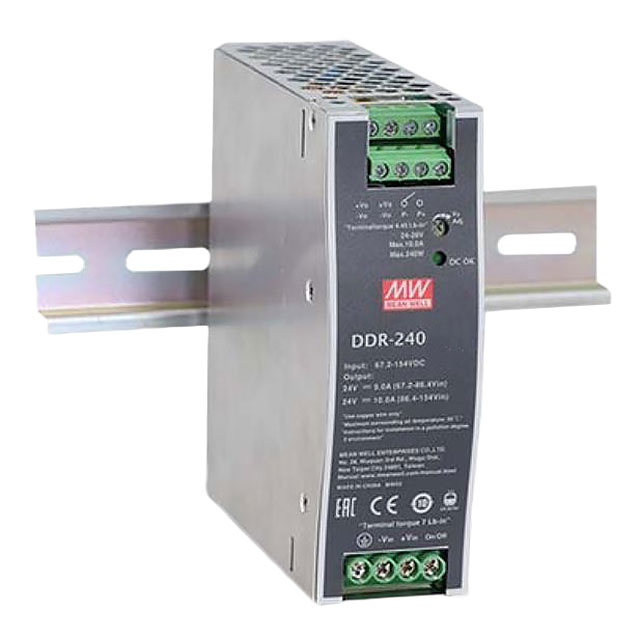

MEAN WELL USA Inc. DDR-240B-24	24 V	240 Watts	1	16.8 V	Adjustable Output Load Sharing Remote On/Off	33.6 V	10 A	DC	40 mm	4.93 in	125.2 mm	113.5 mm	4.47 "	1.57 "	90 %	CE EAC	ITE (Commercial) Railway	4000 V
MEAN WELL USA Inc. DDR-240C-48	48 V	240 Watts	1	33.6 V	Adjustable Output Load Sharing Remote On/Off	67.2 V		DC	40 mm	4.93 in	125.2 mm	113.5 mm	4.47 "	1.57 "	92 %	CE EAC	ITE (Commercial) Railway	4000 V	5 A
MEAN WELL USA Inc. DDR-240C-24	24 V	240 Watts	1	33.6 V	Adjustable Output Load Sharing Remote On/Off	67.2 V	10 A	DC	40 mm	4.93 in	125.2 mm	113.5 mm	4.47 "	1.57 "	91 %	CE EAC	ITE (Commercial) Railway	4000 V
