PC123X1 Series
Manufacturer: SHARP/Socle Technology
Beta
⌘K
OPTOISOLATOR
| Part | Current Transfer Ratio (Max) | Current - Output / Channel [custom] | Supplier Device Package | Voltage - Isolation | Rise / Fall Time (Typ) [custom] | Rise / Fall Time (Typ) [custom] | Number of Channels [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Package / Case | Current - DC Forward (If) (Max) [Max] | Output Type | Vce Saturation (Max) [Max] | Input Type | Current Transfer Ratio (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

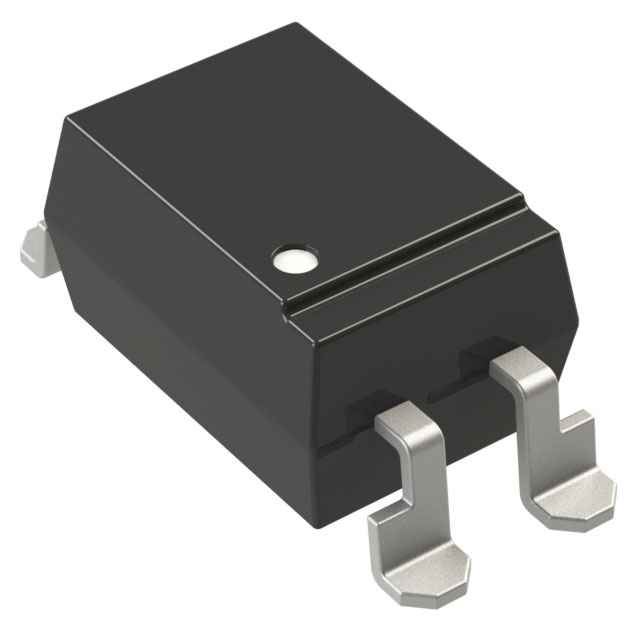

 SHARP/Socle Technology | 400 % | 50 mA | 4-SMD | 890 Vpk | 4 µs | 3 µs | 1 | -30 ░C | 100 °C | Surface Mount | 4-SMD Gull Wing | 50 mA | Transistor | 200 mV | DC | 50 % |
