3189 Series

Catalog

CONN RING 16-22 AWG #10 PIDG

Part	Contact Finish	Width - Outer Edges [y]	Width - Outer Edges [y]	Material - Insulation	Color	Terminal Type	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Insulation	Contact Material	Termination	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Thickness	Thickness	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Features

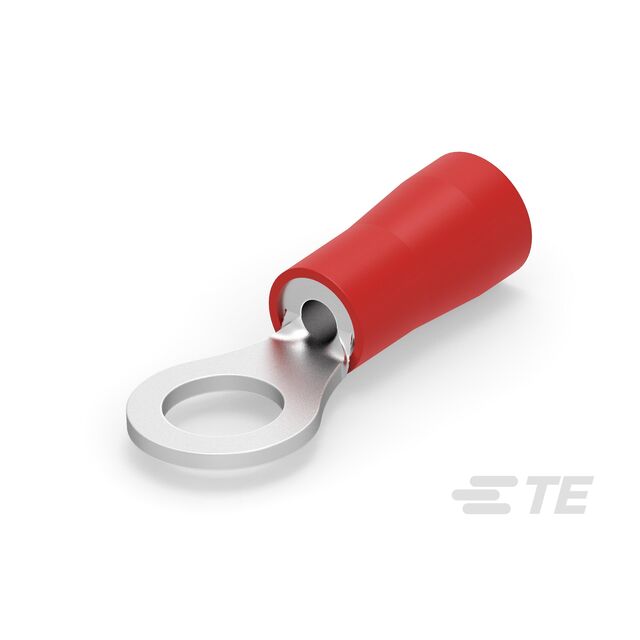

TE Connectivity Raychem Cable Protection 31891	Tin	7.92 mm	0.312 in	Vinyl	Red	Circular	10 Stud	0.844 "	21.44 mm	Insulated	Copper	Crimp	Free Hanging (In-Line)	22 AWG	16 AWG	0.031 in	0.79 mm	0.14 in	0.105 in	3.56 mm	2.67 mm

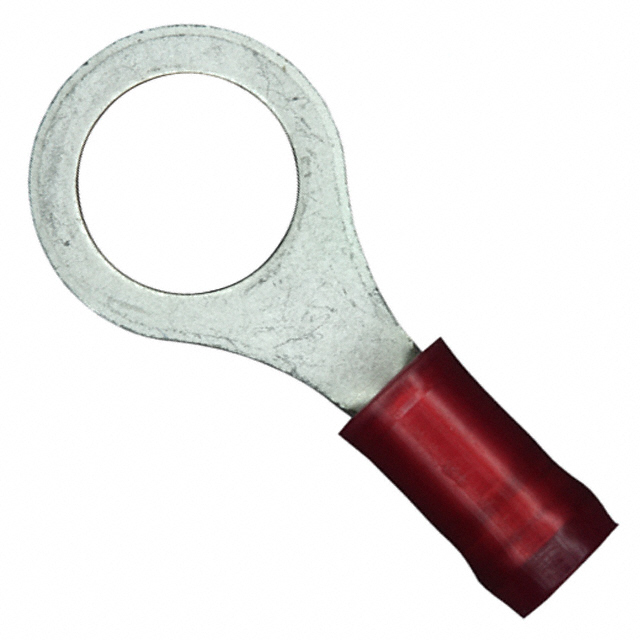

TE Connectivity Raychem Cable Protection 31895	Tin	11.91 mm	0.469 in	Nylon Polyamide (PA)	Red	Circular	0.3125 Stud			Insulated	Copper	Crimp	Free Hanging (In-Line)	22 AWG	16 AWG	0.031 in	0.79 mm	0.14 in	0.105 in	3.56 mm	2.67 mm	Serrated Termination
