PC4SF21 Series
Manufacturer: SHARP/Socle Technology
Beta
⌘K

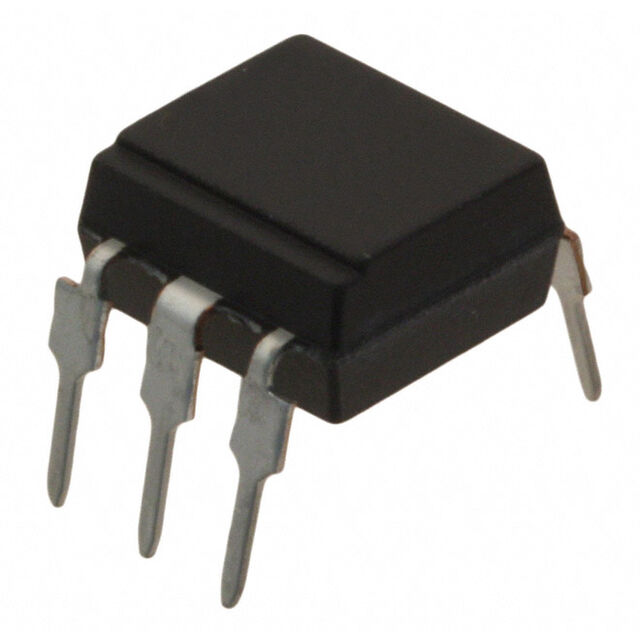

OPTOISOLATOR 5KV TRIAC 6DIP
| Part | Current - On State (It (RMS)) (Max) [Max] | Current - LED Trigger (Ift) (Max) [Max] | Number of Channels [custom] | Current - Hold (Ih) | Voltage - Off State | Current - DC Forward (If) (Max) [Max] | Static dV/dt (Min) [Min] | Supplier Device Package | Package / Case | Package / Case | Package / Case | Package / Case | Turn On Time [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Zero Crossing Circuit | Output Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SHARP/Socle Technology | 100 mA | 7 mA | 1 | 3.5 mA | 800 V | 50 mA | 500 V/µs | 6-DIP | 6-DIP | 0.3 in | 5 Leads | 7.62 mm | 50 µs | -30 ░C | 100 °C | BSI CSA DEMKO FIMKO SEMKO UR VDE | Triac | Through Hole |
