79103 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

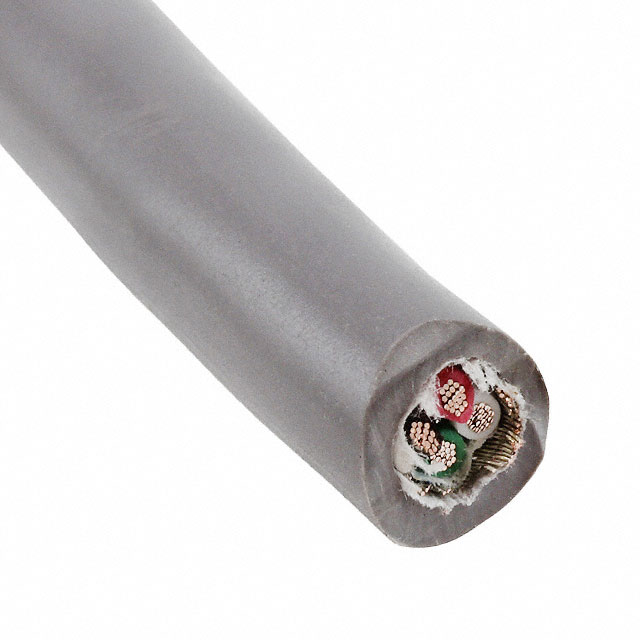

CABLE 4CON 20AWG SLATE SHLD
| Part | Shield Material | Jacket Color | Conductor Material | Jacket (Insulation) Material | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Coverage | Number of Conductors | Wire Gauge | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Features | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | Slate | Copper Tinned | Polyphenylene Ether Modified (mPPE) | Multi-Conductor | 0.889 mm | 0.035 in | 85 % | 4 | 20 AWG | ISO 10993 | 30 AWG | 10 | 30.5 m | 100 ft | Polyphenylene Ether Modified (mPPE) | 5.92 mm | 0.233 " | Braid | -40 °C | 105 ░C | 600 V | Biological Compatibility | ||
ALPHA WIRE | Copper Tinned | Slate | Copper Tinned | Polyphenylene Ether Modified (mPPE) | Multi-Conductor | 0.889 mm | 0.035 in | 85 % | 4 | 20 AWG | ISO 10993 | 30 AWG | 10 | Polyphenylene Ether Modified (mPPE) | 5.92 mm | 0.233 " | Braid | -40 °C | 105 ░C | 600 V | Biological Compatibility | ||||
ALPHA WIRE | Copper Tinned | Slate | Copper Tinned | Polyphenylene Ether Modified (mPPE) | Multi-Conductor | 0.889 mm | 0.035 in | 85 % | 4 | 20 AWG | ISO 10993 | 30 AWG | 10 | Polyphenylene Ether Modified (mPPE) | 5.92 mm | 0.233 " | Braid | -40 °C | 105 ░C | 600 V | Biological Compatibility | 1000 ft | 304.8 m |
