749639 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

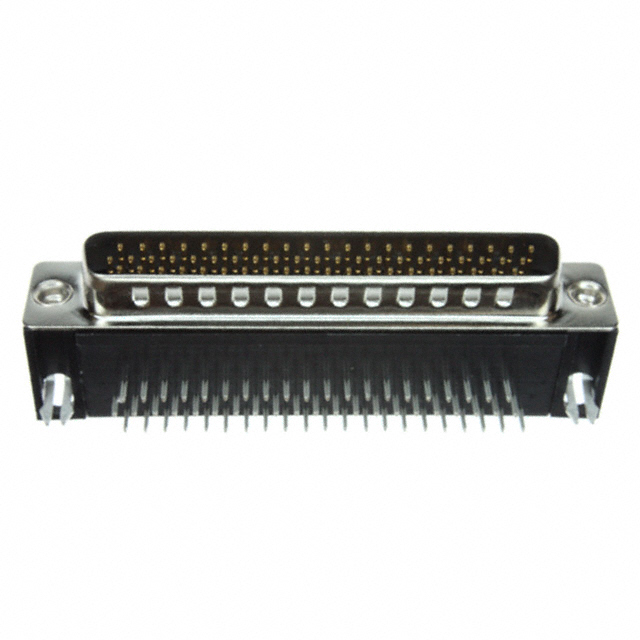

CONN D-SUB HD PLUG 62P R/A SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Voltage Rating | Color | Dielectric Material | Connector Type | Connector Style | Number of Positions | Number of Rows [custom] | Features | Contact Type | Shell Material, Finish | Material Flammability Rating | Shell Size, Connector Layout | Shell Size, Connector Layout | Contact Finish | Current Rating (Amps) | Flange Feature | Flange Feature | Termination | Backset Spacing | Backset Spacing | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -55 C | 105 ░C | Phosphor Bronze | 125 VDC | Black | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Plug Male Pins | D-Sub High Density | 62 | 3 | Board Lock Grounding Indents | Signal | Nickel Plated Steel | UL94 V-0 | C DC | 4 | Gold | 2 A | Housing/Shell | 4-40 | Solder | 8.89 mm | 0.35 in | Right Angle Through Hole | Flash | ||
 TE Connectivity AMP Connectors | -55 C | 105 ░C | Phosphor Bronze | 125 VDC | Black | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Plug Male Pins | D-Sub High Density | 62 | 3 | Board Lock Grounding Indents | Signal | Nickel Plated Steel | UL94 V-0 | C DC | 4 | Gold | 2 A | Housing/Shell | 4-40 | Solder | 8.89 mm | 0.35 in | Right Angle Through Hole | 30 Áin | 0.76 Ám |
