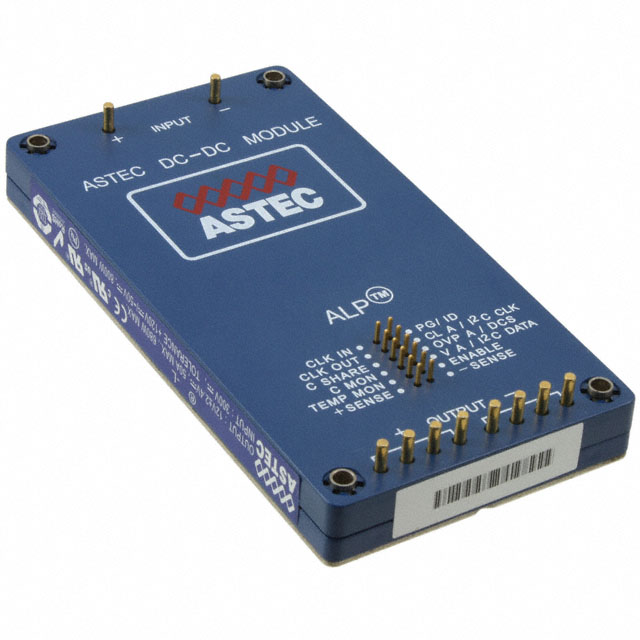

AIF50B300 Series

Catalog

600W, 300VIN, SINGLE, 12V@50A, POS, 4.6" X 2.4" X 0.5" H, NT=NON-THREADED, ROHS 6

Part	Type	Current - Output (Max) [Max]	Features	Mounting Type	Package / Case	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Output 1	Voltage - Input (Max) [Max]	Applications	Voltage - Isolation
ARTESYN / Advanced Energy AIF50B300-NTL	Non-Isolated PoL Module	50 A	OCP OVP Remote On/Off	Through Hole	Module	90 %	4.6 "	14 mm	0.55 in	2.4 in	61 mm	116.8 mm	600 W	-20 ░C	100 °C	1	250 V	12 V	420 V	ITE (Commercial)
ARTESYN / Advanced Energy AIF50B300N-NTL	Isolated Module Digital	50 A	OCP OTP OVP Remote On/Off	Through Hole	10-DIP Module Full Brick	90 %	4.6 "	12.7 mm	0.5 in	2.4 in	61 mm	116.8 mm	600 W	-20 ░C	100 °C	1	250 V	12 V	420 V	ITE (Commercial)	3000 V
ARTESYN / Advanced Energy AIF50B300N-L	Isolated Module	50 A	OCP OVP Remote On/Off	Through Hole	Module	90 %	4.6 "	12.7 mm	0.5 in	2.4 in	61 mm	116.8 mm	600 W	-20 ░C	100 °C	1	250 V	12 V	420 V	ITE (Commercial)
ARTESYN / Advanced Energy AIF50B300-L	Non-Isolated PoL Module	50 A	OCP OVP Remote On/Off	Through Hole	Module	90 %	4.6 "	12.7 mm	0.5 in	2.4 in	61 mm	116.8 mm	600 W	-20 ░C	100 °C	1	250 V	12 V	420 V	ITE (Commercial)
