142.5395.6152 Series

Fuse - BF2 58V / 1000A DC, 150A 200 pc

Catalog

Fuse - BF2 58V / 1000A DC, 150A 200 pc

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	DC Cold Resistance	Response Time	Current Rating (Amps)	Melting I²t	Package / Case	Mounting Type	Voltage Rating - DC	Breaking Capacity @ Rated Voltage	Fuse Type
Littelfuse/Commercial Vehicle Products 142.5395.6152	29 mm	18.8 mm	0.382 "	1.142 inches	9.7 mm	0.74 in	0.00042 Ohms	Slow Blow	150 A	113400	Auto Link	Bolt Mount	58 VDC	1 kA	Automotive

Fuse - BF2 58V / 1000A DC, 150A 200 pc

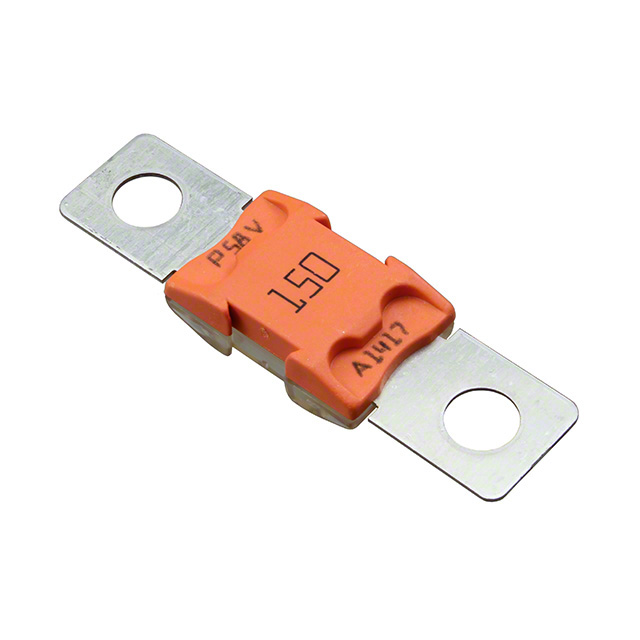

• Orange housing indicates 150 A rating

• Tin-plated copper alloy terminals

• Refers to ISO 8820-5:2015

• UL Recognized in Canada and United States as a UL Special Purpose Fuse

This 150 A BF2 58V bolt-down automotive fuse employs SLO-BLO® technology to provide time-delayed protection for high-current wiring harnesses.
