1761606 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN HEADER VERT 10POS 2.54MM

Part	Mounting Type	Connector Type	Contact Material	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Number of Rows	Current Rating (Amps)	Voltage Rating	Contact Length - Post	Contact Length - Post	Termination	Insulation Color	Insulation Height [z]	Insulation Height [z]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Mating	Features	Number of Positions	Contact Type	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Fastening Type	Style	Number of Positions

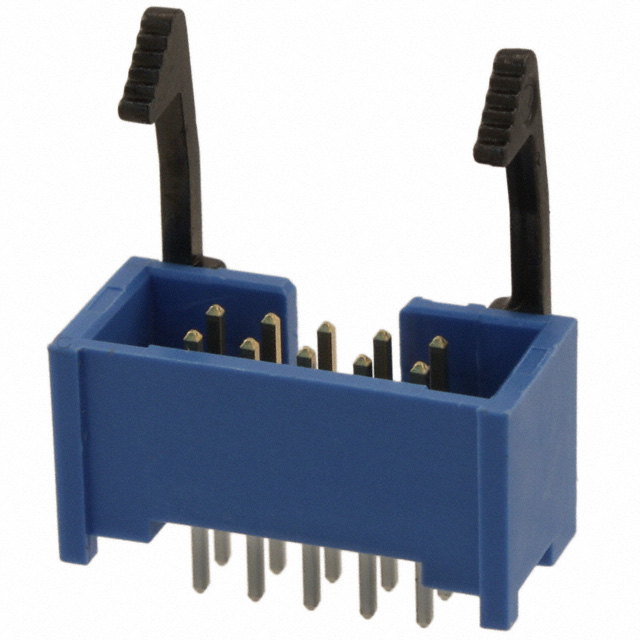

TE Connectivity Raychem Cable Protection 2-1761606-3	Through Hole	Header	Phosphor Bronze	0.1 in	2.54 mm	UL94 V-0	Gold or Gold-Palladium	-65 ░C	105 ░C	All	Shrouded - 4 Wall	30 Áin	0.76 Ám	Tin	2	1 A	250 VAC	0.102 in	2.6 mm	Solder	Blue	0.404 in	10.26 mm	2.54 mm	0.1 in	6.02 mm	0.237 in	Keying Slot	10	Male Pin	Square	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	Latch Lock/Eject Hooks Long	Board to Cable/Wire
TE Connectivity Raychem Cable Protection 3-1761606-7	Through Hole	Header	Phosphor Bronze	0.1 in	2.54 mm	UL94 V-0	Gold or Gold-Palladium	-65 ░C	105 ░C	All	Shrouded - 4 Wall	30 Áin	0.76 Ám	Tin	2	1 A	250 VAC	0.102 in	2.6 mm	Solder	Blue	0.404 in	10.26 mm	2.54 mm	0.1 in	6.02 mm	0.237 in	Keying Slot	64	Male Pin	Square	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	Latch Lock/Eject Hooks Long	Board to Cable/Wire
TE Connectivity Raychem Cable Protection 3-1761606-6	Through Hole	Header	Phosphor Bronze	0.1 in	2.54 mm	UL94 V-0	Gold or Gold-Palladium	-65 ░C	105 ░C	All	Shrouded - 4 Wall	30 Áin	0.76 Ám	Tin	2	1 A	250 VAC	0.102 in	2.6 mm	Solder	Blue	0.404 in	10.26 mm	2.54 mm	0.1 in	6.02 mm	0.237 in	Keying Slot	60	Male Pin	Square	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	Latch Lock/Eject Hooks Long	Board to Cable/Wire
TE Connectivity Raychem Cable Protection 2-1761606-8	Through Hole	Header	Phosphor Bronze	0.1 in	2.54 mm	UL94 V-0	Gold or Gold-Palladium	-65 ░C	105 ░C	All	Shrouded - 4 Wall	30 Áin	0.76 Ám	Tin	2	1 A	250 VAC	0.102 in	2.6 mm	Solder	Blue	0.404 in	10.26 mm	2.54 mm	0.1 in	6.02 mm	0.237 in	Keying Slot	24	Male Pin	Square	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	Latch Lock/Eject Hooks Long	Board to Cable/Wire

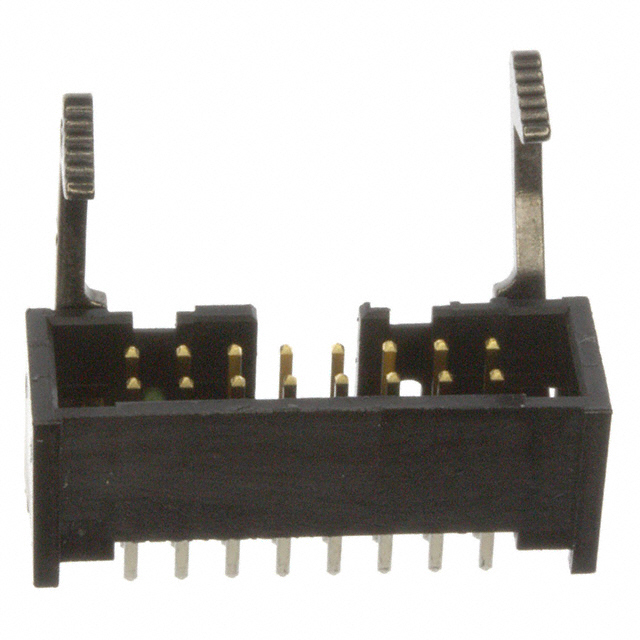

TE Connectivity Raychem Cable Protection 1761606-6	Through Hole	Header	Phosphor Bronze	0.1 in	2.54 mm	UL94 V-0	Gold or Gold-Palladium	-65 ░C	105 ░C	All	Shrouded - 4 Wall	30 Áin	0.76 Ám	Tin	2	1 A	250 VAC	0.102 in	2.6 mm	Solder	Black	0.404 in	10.26 mm	2.54 mm	0.1 in	6.02 mm	0.237 in	Keying Slot		Male Pin	Square	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	Latch Lock/Eject Hooks Long	Board to Cable/Wire	16
