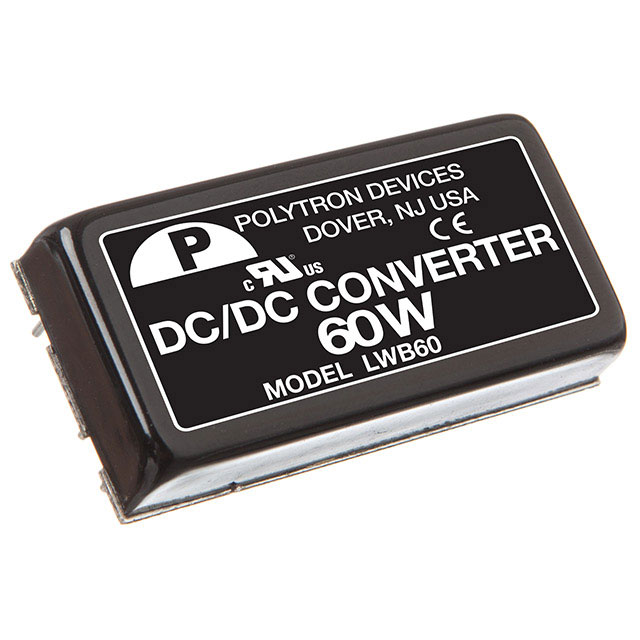

LWB60 Series
Manufacturer: Polytron
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
DC DC CONVERTER +/-12V 60W
| Part | Applications | Type | Features | Voltage - Input (Min) | Efficiency | Power (Watts) | Voltage - Output 2 | Operating Temperature (Max) | Operating Temperature (Min) | Voltage - Output 1 | Voltage - Input (Max) | Size / Dimension Width | Size / Dimension Length | Size / Dimension Height | Number of Outputs | Package / Case | Voltage - Isolation | Mounting Type | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Polytron | ITE (Commercial) | Isolated Module | OCP OTP OVP Remote On/Off SCP | 9 V | 91 % | 60 W | -12 V | 85 °C | -40 °C | 12 V | 36 V | 1 in | 2 in | 0.4 in | 2 | 6-DIP Module | 1.6 kV | Through Hole | 2.5 A |
Polytron | ITE (Commercial) | Isolated Module | OCP OTP OVP Remote On/Off SCP | 18 V | 91 % | 60 W | -15 V | 85 °C | -40 °C | 15 V | 75 V | 1 in | 2 in | 0.4 in | 2 | 6-DIP Module | 1.6 kV | Through Hole | 2 A |
Polytron | ITE (Commercial) | Isolated Module | OCP OTP OVP Remote On/Off SCP | 18 V | 92 % | 60 W | 85 °C | -40 °C | 12 V | 75 V | 1 in | 2 in | 0.4 in | 1 | 6-DIP Module | 1.6 kV | Through Hole | 5 A | |
Polytron | ITE (Commercial) | Isolated Module | OCP OTP OVP Remote On/Off SCP | 18 V | 91 % | 60 W | -24 V | 85 °C | -40 °C | 24 V | 75 V | 1 in | 2 in | 0.4 in | 2 | 6-DIP Module | 1.6 kV | Through Hole | 1.25 A |
Polytron | ITE (Commercial) | Isolated Module | OCP OTP OVP Remote On/Off SCP | 9 V | 92 % | 60 W | 85 °C | -40 °C | 24 V | 36 V | 1 in | 2 in | 0.4 in | 1 | 6-DIP Module | 1.6 kV | Through Hole | 2.5 A | |
Polytron | ITE (Commercial) | Isolated Module | OCP OTP OVP Remote On/Off SCP | 9 V | 91 % | 60 W | -24 V | 85 °C | -40 °C | 24 V | 36 V | 1 in | 2 in | 0.4 in | 2 | 6-DIP Module | 1.6 kV | Through Hole | 1.25 A |
