DC11.0001 Series

Catalog

AC POWER ENTRY MODULES DC11 PWR ENTRY MODUL

Part	Panel Thickness	Panel Thickness	Switch Features	Current Rating - Appliance Inlet	Mounting Type	Ingress Protection	Connector Style	Material Flammability Rating	Termination	Termination	Termination	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Approval Agency	Voltage Rating - Appliance Inlet	Connector Type	Filter Type
SCHURTER Inc. DC11.0001.207	1.5 mm	0.059 in	Switch On-Off	10 A	Panel Mount Snap-In	IP40	IEC 320-C14	UL94 V-0	0.189 "	4.8 mm	Quick Connect	27.6 mm	31.6 mm	CCC cULus ENEC	250 VAC	Receptacle Male Blades - Module	Unfiltered - Commercial
SCHURTER Inc. DC11.0001.301	2 mm	0.079 in	Switch On-Off	10 A	Panel Mount Snap-In	IP40	IEC 320-C14	UL94 V-0	0.189 "	4.8 mm	Quick Connect	27.6 mm	31.6 mm	CCC cULus ENEC	250 VAC	Receptacle Male Blades - Module	Unfiltered - Commercial
SCHURTER Inc. DC11.0001.303	2 mm	0.079 in	Switch On-Off	10 A	Panel Mount Snap-In	IP40	IEC 320-C14	UL94 V-0	0.189 "	4.8 mm	Quick Connect	27.6 mm	31.6 mm	CCC cULus ENEC	250 VAC	Receptacle Male Blades - Module	Unfiltered - Commercial

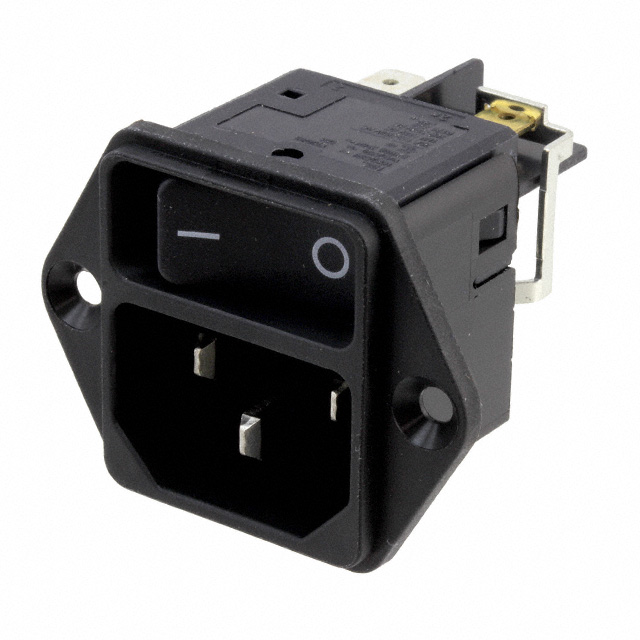

SCHURTER Inc. DC11.0001.003			Switch On-Off	10 A	Flange Panel Mount	IP40	IEC 320-C14	UL94 V-0	0.189 "	4.8 mm	Quick Connect	27.6 mm	31.6 mm	CCC cULus ENEC	250 VAC	Receptacle Male Blades - Module	Unfiltered - Commercial

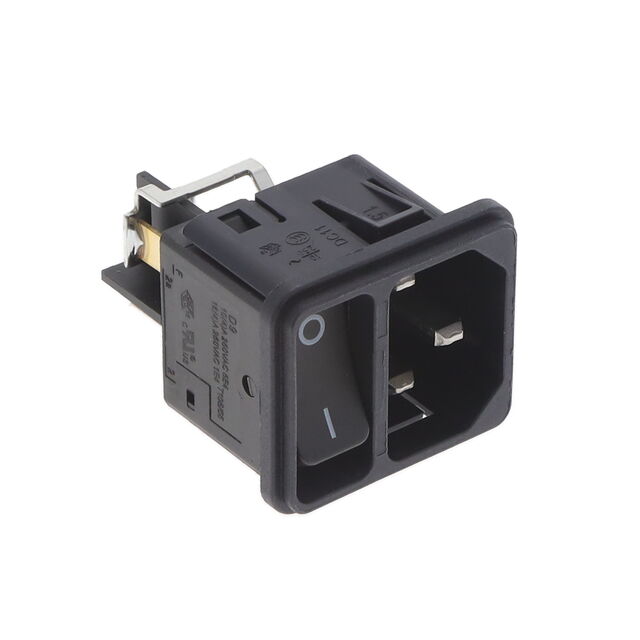

SCHURTER Inc. DC11.0001.206	1.5 mm	0.059 in	Switch On-Off	10 A	Panel Mount Snap-In	IP40	IEC 320-C14	UL94 V-0	0.189 "	4.8 mm	Quick Connect	27.6 mm	31.6 mm	CCC cULus ENEC	250 VAC	Receptacle Male Blades - Module	Unfiltered - Commercial

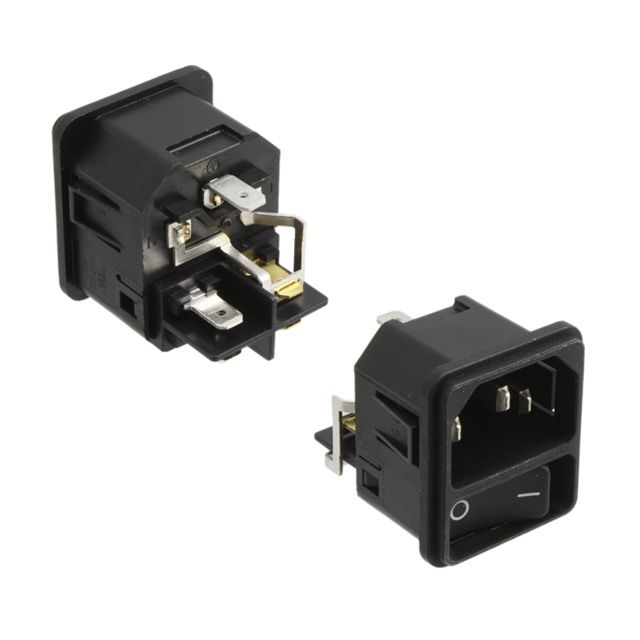

SCHURTER Inc. DC11.0001.201	1.5 mm	0.059 in	Switch On-Off	10 A	Panel Mount Snap-In	IP40	IEC 320-C14	UL94 V-0	0.189 "	4.8 mm	Quick Connect	27.6 mm	31.6 mm	CCC cULus ENEC	250 VAC	Receptacle Male Blades - Module	Unfiltered - Commercial
