AWHW2-16 Series

Catalog

CONN HEADER SMD 16POS 2.54MM

Part	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Finish Thickness - Mating	Termination	Insulation Color	Connector Type	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Contact Material	Number of Positions	Insulation Height	Insulation Height	Current Rating (Amps)	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Fastening Type	Number of Rows [custom]	Insulation Material	Features	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Shrouding	Contact Type	Contact Length - Post [custom]	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating

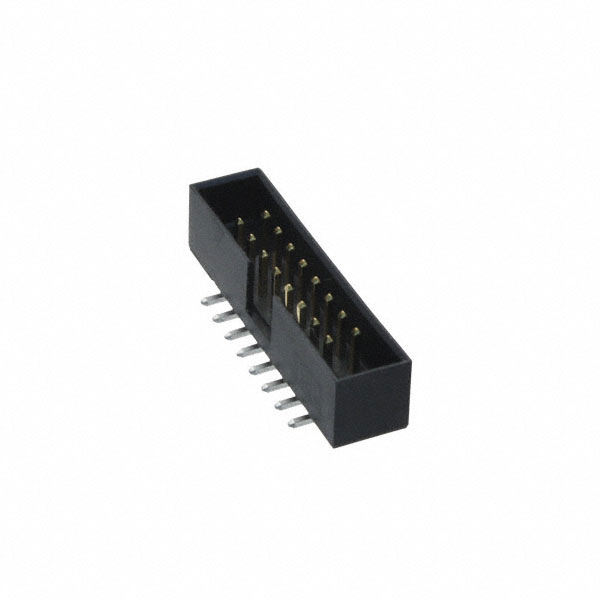

Assmann WSW Components AWHW2-16G-SMD-R	0.1 "	2.54 mm	Gold	Flash	Solder	Black	Header	Surface Mount	0.1 in	2.54 mm	Board to Cable/Wire	Brass	16	5.74 mm	0.226 in	1.5 A	UL94 V-0	4 mm	0.157 in	Push-Pull	2	Glass Filled Nylon 9T Polyamide (PA9T)	Keying Slot Pick and Place	All	-40 C	105 ░C	Square	Shrouded - 4 Wall	Male Pin

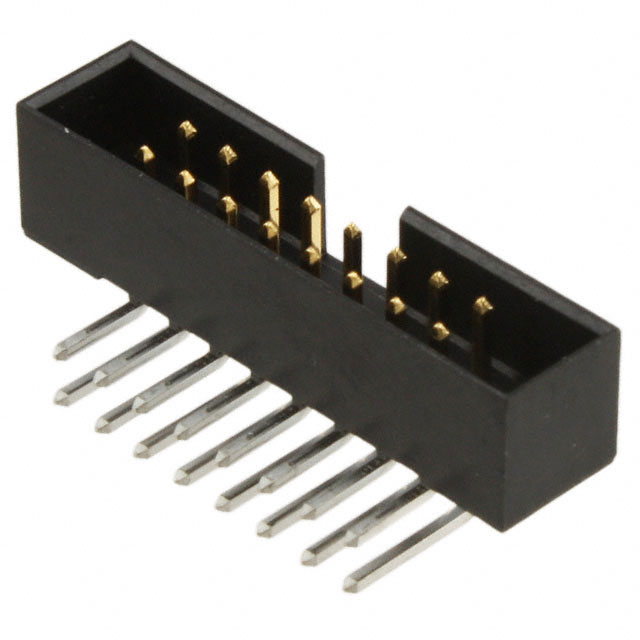

Assmann WSW Components AWHW2-16A-0202-T-R	0.079 "	2 mm	Gold	Flash	Solder	Black	Header	Right Angle Through Hole			Board to Cable/Wire	Brass	16	5.51 mm	0.217 in	1.5 A	UL94 V-0	4 mm	0.157 in	Push-Pull	2	Glass Filled Nylon 9T Polyamide (PA9T)	Keying Slot	All	-40 C	105 ░C	Square	Shrouded - 4 Wall	Male Pin	0.11 in	2.79 mm	2 mm	0.079 in
