DAC7554 Series
Manufacturer: Texas Instruments
Beta
⌘K
LOW-POWER, LOW-GLITCH, 12-BIT DAC
| Part | Supplier Device Package | Data Interface | Settling Time | Output Type | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | INL/DNL (LSB) | Reference Type | Package / Case | Package / Case [x] | Package / Case [x] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Architecture | Differential Output | Number of Bits | Number of D/A Converters | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | DAC Type | Number of DAC's | Sampling Rate (Per Second) | Supplied Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 10-VSSOP | DSP SPI | 5 µs | Voltage - Buffered | 5.5 V | 2.7 V | 0.08 LSB 0.35 LSB | External | 10-MSOP 10-TFSOP | 3 mm | 0.118 in | -40 °C | 105 ░C | Surface Mount | String DAC | 12 bits | 4 | 2.7 V | 5.5 V | ||||||

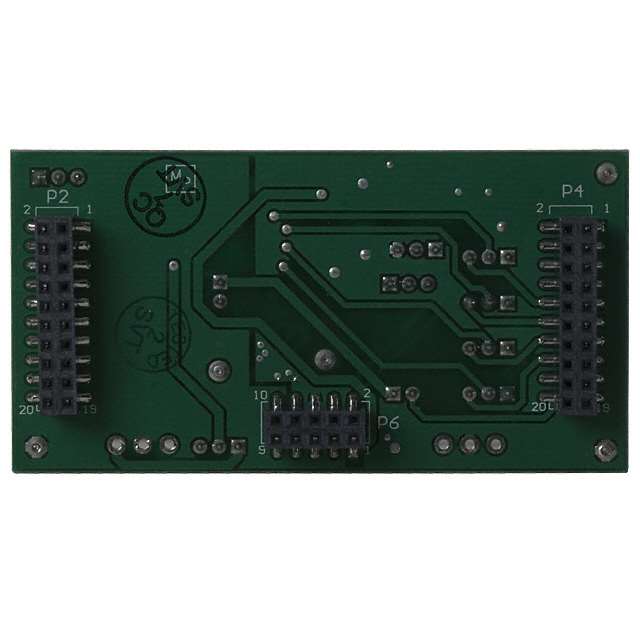

 Texas Instruments | Serial | 8 µs | 12 bits | Voltage | 4 | 50 M | Board(s) | DAC7554 | |||||||||||||||||
 Texas Instruments | 10-VSSOP | DSP SPI | 5 µs | Voltage - Buffered | 5.5 V | 2.7 V | 0.08 LSB 0.35 LSB | External | 10-MSOP 10-TFSOP | 3 mm | 0.118 in | -40 °C | 105 ░C | Surface Mount | String DAC | 12 bits | 4 | 2.7 V | 5.5 V |
