770876 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

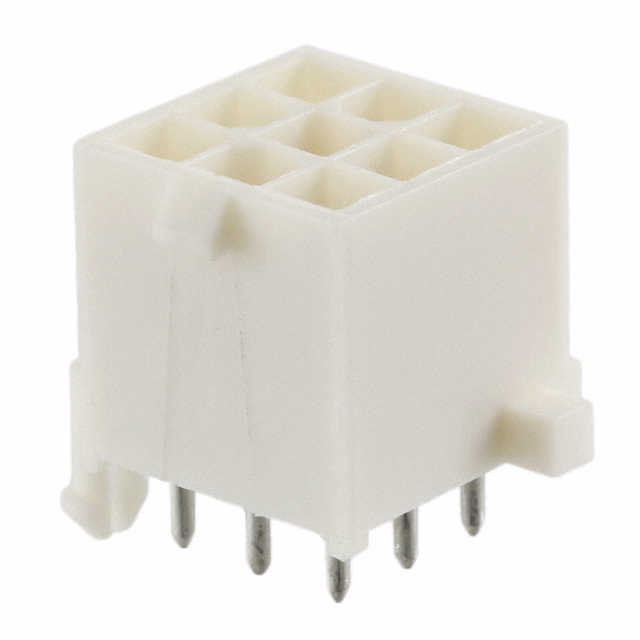

CONN HEADER VERT 9POS 4.14MM
| Part | Contact Finish Thickness - Post | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions Loaded | Number of Rows [custom] | Current Rating (Amps) | Insulation Color | Number of Positions | Style | Termination | Pitch - Mating | Pitch - Mating | Contact Type | Contact Finish - Mating | Connector Type | Shrouding | Contact Finish - Post | Mounting Type | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Contact Length - Post | Contact Length - Post | Fastening Type | Voltage Rating | Features | Contact Material | Material Flammability Rating | Insulation Height | Insulation Height | Row Spacing - Mating [x] | Row Spacing - Mating [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3.81 Ám | General Purpose | 0.76 Ám | 30 Áin | All | 3 | Varies by Wire Gauge | White | 9 | Board to Cable/Wire | Solder | 0.163 in | 4.14 mm | Male Pin | Gold | Header | Shrouded - 4 Wall | Tin-Lead | Through Hole | Nylon Polyamide (PA) | -20 ░C | 105 ░C | Circular | 4.45 mm | 0.175 in | Locking Ramp | 600 VAC | Board Lock | Brass | UL94 V-0 | 13.5 mm | 0.531 in | 4.14 mm | 0.163 in |
