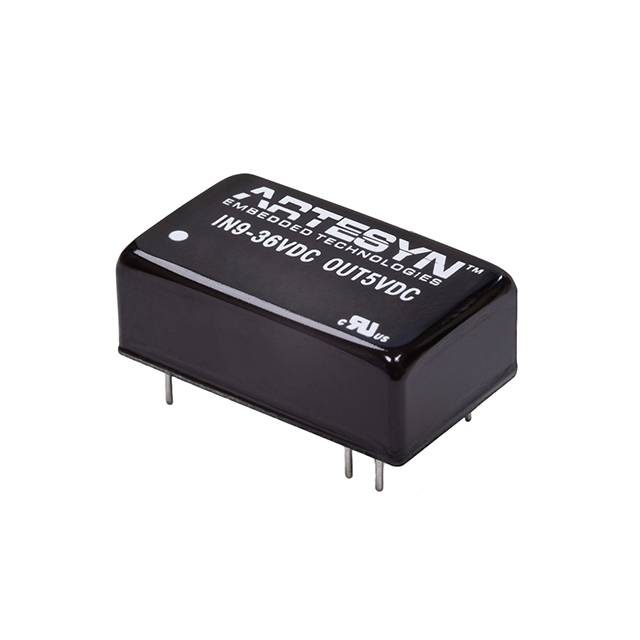

ATA01A Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
MODULE DC-DC 48VIN 1-OUT 5V 1.2A 6W 6-PIN DIP MODULE
| Part | Number of Outputs | Package / Case | Current - Output (Max) [Max] | Voltage - Output 1 | Voltage - Input (Min) [Min] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Type | Features | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Isolation | Applications | Voltage - Input (Max) [Max] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 1 | 16-DIP Module 6 Leads | 1.2 A | 5 V | 18 V | Through Hole | 90 °C | -40 °C | Isolated Module | OCP SCP UVLO | 0.31 " | 0.94 in | 0.54 in | 13.7 mm | 23.8 mm | 8 mm | 1.5 kV | ITE (Commercial) | 75 V | 6 W |
