0928-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

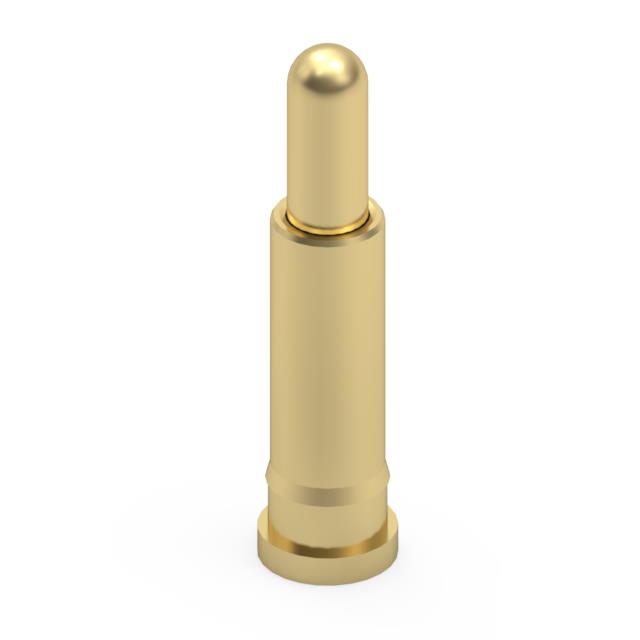

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Type | Current Rating (Amps) | Minimum Working Height | Minimum Working Height | Mating Cycles | Pad Layout Dimension | Pad Layout Dimension | Mounting Type | Maximum Working Height [Max] | Maximum Working Height [Max] | Operating Force - Mid Compression | Contact Finish | Recommended Working Height | Recommended Working Height | Contact Finish Thickness | Contact Finish Thickness | Plunger Size [diameter] | Plunger Size [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Brass Alloy | Sleeve & Plunger (Pogo Pins) | 5.2 A | 0.217 in | 5.5 mm | 1000000 | 0.072 in | 1.83 mm | Surface Mount | 0.295 in | 7.49 mm | 60 gf | Gold | 0.256 " | 6.5 mm | 20 µin | 0.51 µm | 0.042 in | 1.07 mm |
