EN12 Series

Catalog

ENCODERS 12MM ROTARY INCREMENTAL ENCODER

Part	Termination Style	Encoder Type	Output Type	Actuator Type [diameter]	Actuator Type	Orientation	Pulses per Revolution	Rotational Life (Cycles Min)

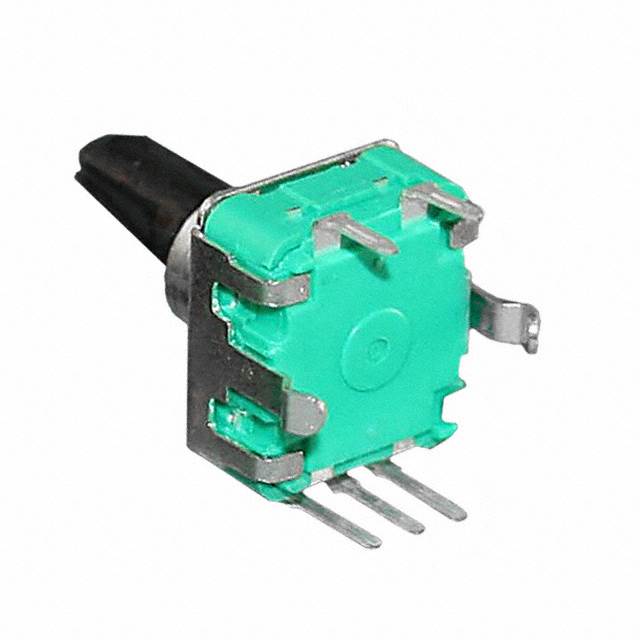

TT Electronics/BI EN12-HS22AF30	PC Pin	Mechanical	Quadrature (Incremental)	6 mm	Flatted End	Vertical	24	30K

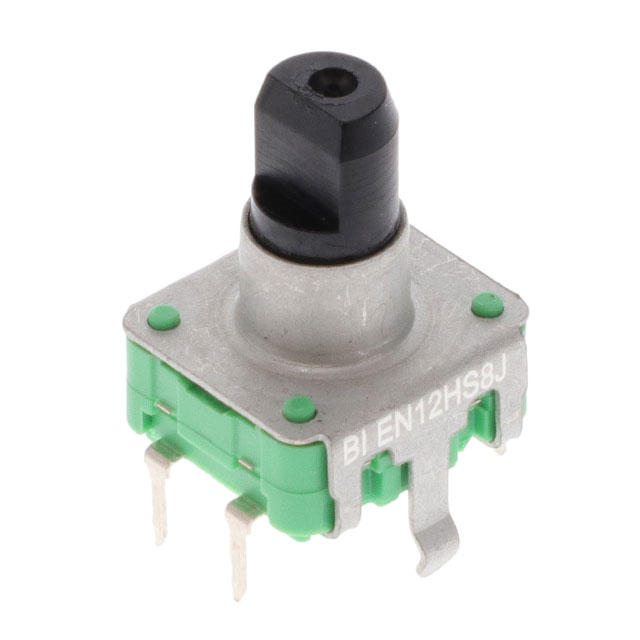

TT Electronics/BI EN12-HS22AF18	PC Pin	Mechanical	Quadrature (Incremental)	6 mm	Flatted End	Vertical	24	30K
TT Electronics/BI EN12-HS22AF23	PC Pin	Mechanical	Quadrature (Incremental)	6 mm	Flatted End	Vertical	24	30K
TT Electronics/BI EN12-HN11AF18	PC Pin	Mechanical	Quadrature (Incremental)	6 mm	Flatted End	Vertical	12	30K
TT Electronics/BI EN12-VS20AF25	PC Pin	Mechanical	Quadrature (Incremental)	6 mm	Flatted End	Right Angle	24	30K
TT Electronics/BI EN12-VS20AF18	PC Pin	Mechanical	Quadrature (Incremental)	6 mm	Flatted End	Right Angle	24	30K
TT Electronics/BI EN12-HS11AF18	PC Pin	Mechanical	Quadrature (Incremental)	6 mm	Flatted End	Vertical	12	30K
TT Electronics/BI EN12-HN20AF18	PC Pin	Mechanical	Quadrature (Incremental)	6 mm	Flatted End	Vertical	24	30K
TT Electronics/BI EN12-VS22AF18	PC Pin	Mechanical	Quadrature (Incremental)	6 mm	Flatted End	Right Angle	24	30K
TT Electronics/BI EN12-HS22AF20	PC Pin	Mechanical	Quadrature (Incremental)	6 mm	Flatted End	Vertical	24	30K
