45434 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

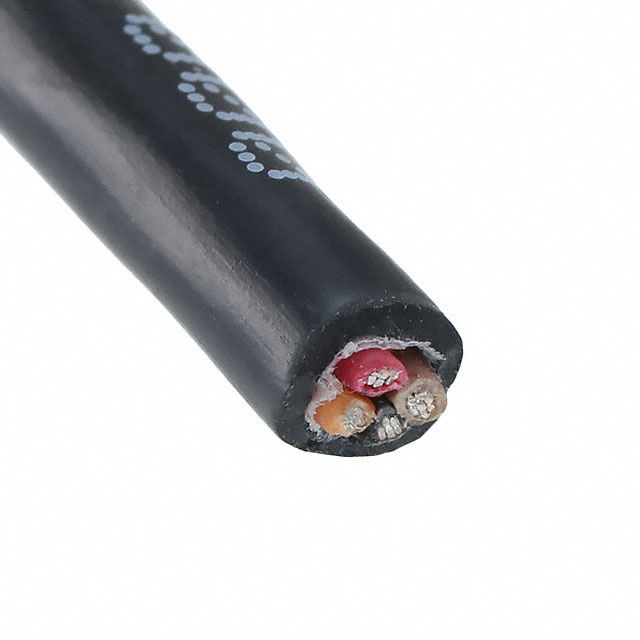

CABLE 4COND 16AWG SLATE 1000'
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Number of Conductors | Wire Gauge | Jacket Color | Jacket (Insulation) Material | Length | Length | Voltage | Features | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | -50 °C | 125 °C | Multi-Conductor | 4 | 16 AWG | Slate | Thermoplastic Elastomer (TPE) | 1000 ft | 304.8 m | 600 V | Biological Compatibility Rip Cord | Copper Tinned | 19 | 0.0117 in | Thermoplastic Elastomer (TPE) | ISO 10993 | 1.397 mm | 0.055 in | 10.46 mm | 0.412 in | ||
 ALPHA WIRE | -50 °C | 125 °C | Multi-Conductor | 4 | 16 AWG | Black | Thermoplastic Elastomer (TPE) | 600 V | Biological Compatibility Rip Cord | Copper Tinned | 19 | 0.0117 in | Thermoplastic Elastomer (TPE) | ISO 10993 | 1.397 mm | 0.055 in | 10.46 mm | 0.412 in | 30.5 m | 100 ft | ||
ALPHA WIRE | -50 °C | 125 °C | Multi-Conductor | 4 | 16 AWG | Black | Thermoplastic Elastomer (TPE) | 1000 ft | 304.8 m | 600 V | Biological Compatibility Rip Cord | Copper Tinned | 19 | 0.0117 in | Thermoplastic Elastomer (TPE) | ISO 10993 | 1.397 mm | 0.055 in | 10.46 mm | 0.412 in | ||
ALPHA WIRE | -50 °C | 125 °C | Multi-Conductor | 4 | 16 AWG | Yellow | Thermoplastic Elastomer (TPE) | 1000 ft | 304.8 m | 600 V | Biological Compatibility Rip Cord | Copper Tinned | 19 | 0.0117 in | Thermoplastic Elastomer (TPE) | ISO 10993 | 1.397 mm | 0.055 in | 10.46 mm | 0.412 in |
