AKA03 Series

Catalog

CONN RCPT HSG MALE 17POS INLINE

Part	Connector Type	Note	Orientation	Contact Shape	Shell Finish	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Shell Size - Insert	Shielding	Features	Ingress Protection	Fastening Type	Mounting Type	Housing Color	Includes	Shell Material	Type

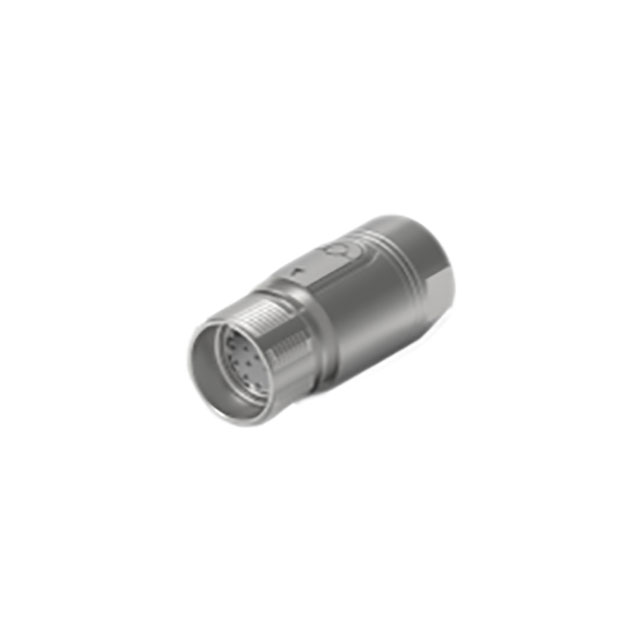

TE Intercontec AKA034N00400100000	Receptacle Housing	Contacts Not Included	Keyed	Circular	Nickel	Polybutylene Terephthalate (PBT)	-20 ░C	130 °C	UL94 V-0	M23-17	Shielded	Backshell Cable Clamp	IP66 IP67	Push-Twist	Free Hanging (In-Line)	Silver	1 Backshell 1 Cable Clamp 1 Connector	Zinc Die Cast	For Male Pins
TE Intercontec AKA034N00610200000	Receptacle Housing	Contacts Not Included	Keyed	Circular	Nickel	Polybutylene Terephthalate (PBT)	-20 ░C	130 °C	UL94 V-0	M23-17	Shielded	Backshell Cable Clamp	IP66 IP67	Push-Twist	Free Hanging (In-Line)	Silver	1 Backshell 1 Cable Clamp 1 Connector	Zinc Die Cast	For Male Pins
TE Intercontec AKA034N00400200000	Receptacle Housing	Contacts Not Included	Keyed	Circular	Nickel	Polybutylene Terephthalate (PBT)	-20 ░C	130 °C	UL94 V-0	M23-17	Shielded	Backshell Cable Clamp	IP66 IP67	Push-Twist	Free Hanging (In-Line)	Silver	1 Backshell 1 Cable Clamp 1 Connector	Zinc Die Cast	For Male Pins
TE Intercontec AKA034N00600200000	Receptacle Housing	Contacts Not Included	Keyed	Circular	Nickel	Polybutylene Terephthalate (PBT)	-20 ░C	130 °C	UL94 V-0	M23-17	Shielded	Backshell Cable Clamp	IP66 IP67	Push-Twist	Free Hanging (In-Line)	Silver	1 Backshell 1 Cable Clamp 1 Connector	Zinc Die Cast	For Male Pins
TE Intercontec AKA034N00090200000	Receptacle Housing	Contacts Not Included	Keyed	Circular	Nickel	Polybutylene Terephthalate (PBT)	-20 ░C	130 °C	UL94 V-0	M23-17	Shielded	Backshell Cable Clamp	IP66 IP67	Push-Twist	Free Hanging (In-Line)	Silver	1 Backshell 1 Cable Clamp 1 Connector	Zinc Die Cast	For Male Pins
TE Intercontec AKA034N00620200000	Receptacle Housing	Contacts Not Included	Keyed	Circular	Nickel	Polybutylene Terephthalate (PBT)	-20 ░C	130 °C	UL94 V-0	M23-17	Shielded	Backshell Cable Clamp	IP66 IP67	Push-Twist	Free Hanging (In-Line)	Silver	1 Backshell 1 Cable Clamp 1 Connector	Zinc Die Cast	For Male Pins
TE Intercontec AKA034N00590038000	Receptacle Housing	Contacts Not Included	Keyed	Circular	Nickel	Polybutylene Terephthalate (PBT)	-20 ░C	130 °C	UL94 V-0	M23-17	Shielded	Backshell Cable Clamp	IP66 IP67	Push-Twist	Free Hanging (In-Line)	Silver	1 Backshell 1 Cable Clamp 1 Connector	Zinc Die Cast	For Male Pins
TE Intercontec AKA035N00590038000	Receptacle Housing	Contacts Not Included	Keyed	Circular	Nickel	Polybutylene Terephthalate (PBT)	-20 ░C	130 °C	UL94 V-0	M23-17	Shielded	Backshell Cable Clamp	IP66 IP67	Push-Twist	Free Hanging (In-Line)	Silver	1 Backshell 1 Cable Clamp 1 Connector	Zinc Die Cast	For Male Pins
TE Intercontec AKA035N00730255000	Receptacle Housing	Contacts Not Included	Keyed	Circular	Nickel	Polybutylene Terephthalate (PBT)	-20 ░C	130 °C	UL94 V-0	M23-17	Shielded	Backshell Cable Clamp	IP66 IP67	Push-Twist	Free Hanging (In-Line)	Silver	1 Backshell 1 Cable Clamp 1 Connector	Zinc Die Cast	For Male Pins
TE Intercontec AKA034N00730255000	Receptacle Housing	Contacts Not Included	Keyed	Circular	Nickel	Polybutylene Terephthalate (PBT)	-20 ░C	130 °C	UL94 V-0	M23-17	Shielded	Backshell Cable Clamp	IP66 IP67	Push-Twist	Free Hanging (In-Line)	Silver	1 Backshell 1 Cable Clamp 1 Connector	Zinc Die Cast	For Male Pins
