0301-1 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .025-.037 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall [x]	Length - Overall [x]	Tail Diameter [diameter]	Tail Diameter [diameter]	Termination	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Tail Type	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Accepts Square Pin Size	Accepts Square Pin Size

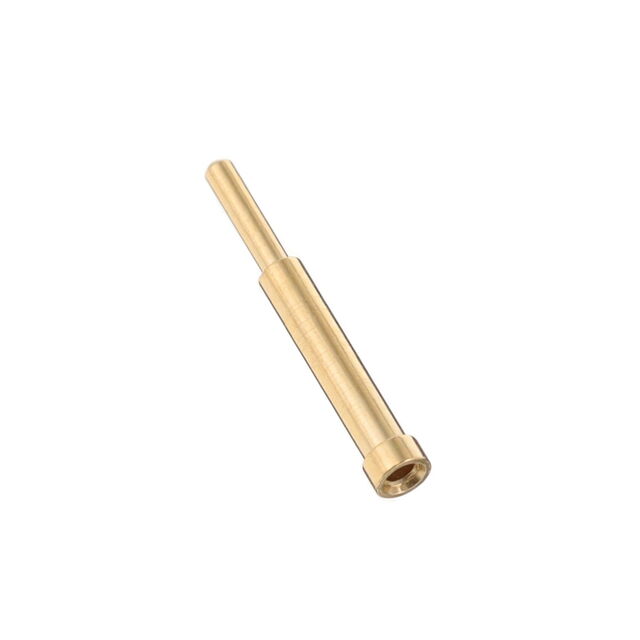

Mill-Max Manufacturing Corp. 0301-1-15-01-47-01-10-0	-55 C	125 °C	0.537 in	13.64 mm	1.02 mm	0.04 "	Solder	0.64 mm	0.037 in	0.94 mm	0.025 in	200 Áin	5.08 Ám	0.042 in	1.07 mm	0.051 in	1.3 mm	Standard Tail	Tin-Lead	0.078 "	1.98 mm	Beryllium Copper	0.025 in	0.64 mm
Mill-Max Manufacturing Corp. 0301-1-15-15-47-14-10-0	-55 C	125 °C	0.537 in	13.64 mm	1.02 mm	0.04 "	Solder	0.64 mm	0.037 in	0.94 mm	0.025 in	10 Áin	0.25 Ám	0.042 in	1.07 mm	0.051 in	1.3 mm	Standard Tail	Gold	0.078 "	1.98 mm	Beryllium Copper	0.025 in	0.64 mm
Mill-Max Manufacturing Corp. 0301-1-15-80-47-27-10-0	-55 C	125 °C	0.537 in	13.64 mm	1.02 mm	0.04 "	Solder	0.64 mm	0.037 in	0.94 mm	0.025 in	30 Áin	0.76 Ám	0.042 in	1.07 mm	0.051 in	1.3 mm	Standard Tail	Gold	0.078 "	1.98 mm	Beryllium Copper	0.025 in	0.64 mm
Mill-Max Manufacturing Corp. 0301-1-15-01-47-27-10-0	-55 C	125 °C	0.537 in	13.64 mm	1.02 mm	0.04 "	Solder	0.64 mm	0.037 in	0.94 mm	0.025 in	30 Áin	0.76 Ám	0.042 in	1.07 mm	0.051 in	1.3 mm	Standard Tail	Gold	0.078 "	1.98 mm	Beryllium Copper	0.025 in	0.64 mm
Mill-Max Manufacturing Corp. 0301-1-15-80-47-14-10-0	-55 C	125 °C	0.537 in	13.64 mm	1.02 mm	0.04 "	Solder	0.64 mm	0.037 in	0.94 mm	0.025 in	10 Áin	0.25 Ám	0.042 in	1.07 mm	0.051 in	1.3 mm	Standard Tail	Gold	0.078 "	1.98 mm	Beryllium Copper	0.025 in	0.64 mm
