M13191 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

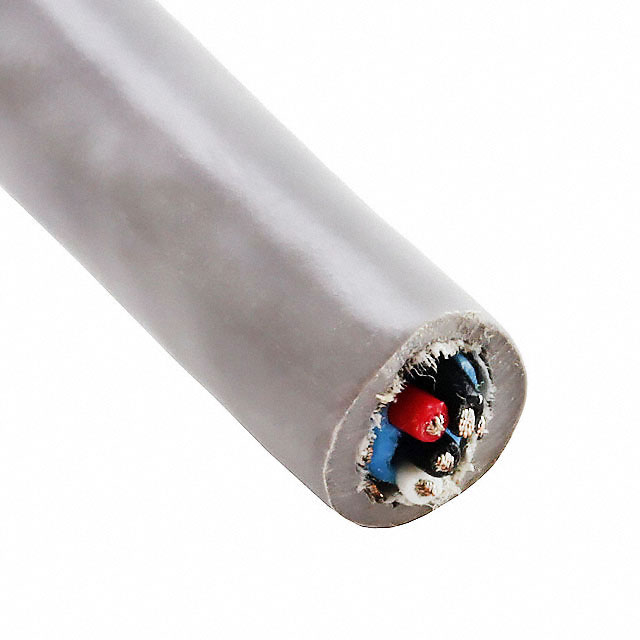

MULTI-PAIR 4CON 24AWG SLATE 100'
| Part | Shield Material | Shield Coverage | Number of Conductors | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Cable Type | Conductor Insulation | Length [x] | Length [x] | Shield Type | Features | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | 4 | 24 AWG | 0.215 in | 5.46 mm | UL Style 2464 | Multi-Pair | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | Foil | Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | 80 °C | -20 ░C | Copper Tinned | 0.813 mm | 0.032 in | Slate | 300 VDC |
