2232356 Series

Catalog

PTL 3X3 CAP PANEL MT GLW WIRE KEY C GRN

Part	Color	Mounting Type	Features	Insulation Material	Number of Rows	Pitch [x]	Pitch [x]	Number of Positions	Connector Type	Note	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Contact Termination	Row Spacing	Row Spacing
TE Connectivity Raychem Cable Protection 7-2232356-3	Green	Through Hole	Cap (Cover)	Glass Filled Nylon Polyamide (PA)	3	0.236 in	6 mm	9	Plug	Contacts Not Included	Male Pin	105 ░C	-55 °C	Latch Holder	Crimp	8.1 mm	0.319 in
TE Connectivity Raychem Cable Protection 7-2232356-7	Green	Through Hole	Cap (Cover)	Glass Filled Nylon Polyamide (PA)	3	0.236 in	6 mm	15	Plug	Contacts Not Included	Male Pin	105 ░C	-55 °C	Latch Holder	Crimp	8.1 mm	0.319 in

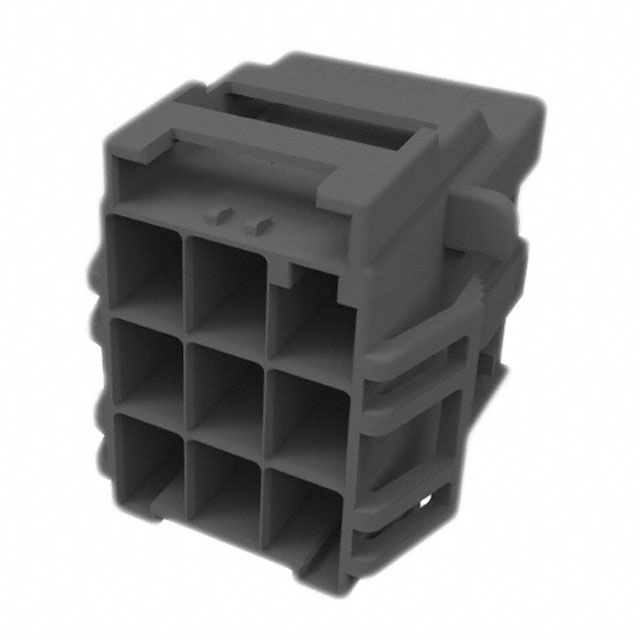

TE Connectivity Raychem Cable Protection 5-2232356-3	Gray	Panel Mount Snap-In		Polyamide (PA6) Nylon 6 Glass Filled	3	0.236 in	6 mm	9	Receptacle	Contacts Not Included	Tab	105 ░C	-55 °C	Latch Lock	Crimp	8.1 mm	0.319 in
TE Connectivity Raychem Cable Protection 6-2232356-7	Brown	Through Hole	Cap (Cover)	Glass Filled Nylon Polyamide (PA)	3	0.236 in	6 mm	15	Plug	Contacts Not Included	Male Pin	105 ░C	-55 °C	Latch Holder	Crimp	8.1 mm	0.319 in

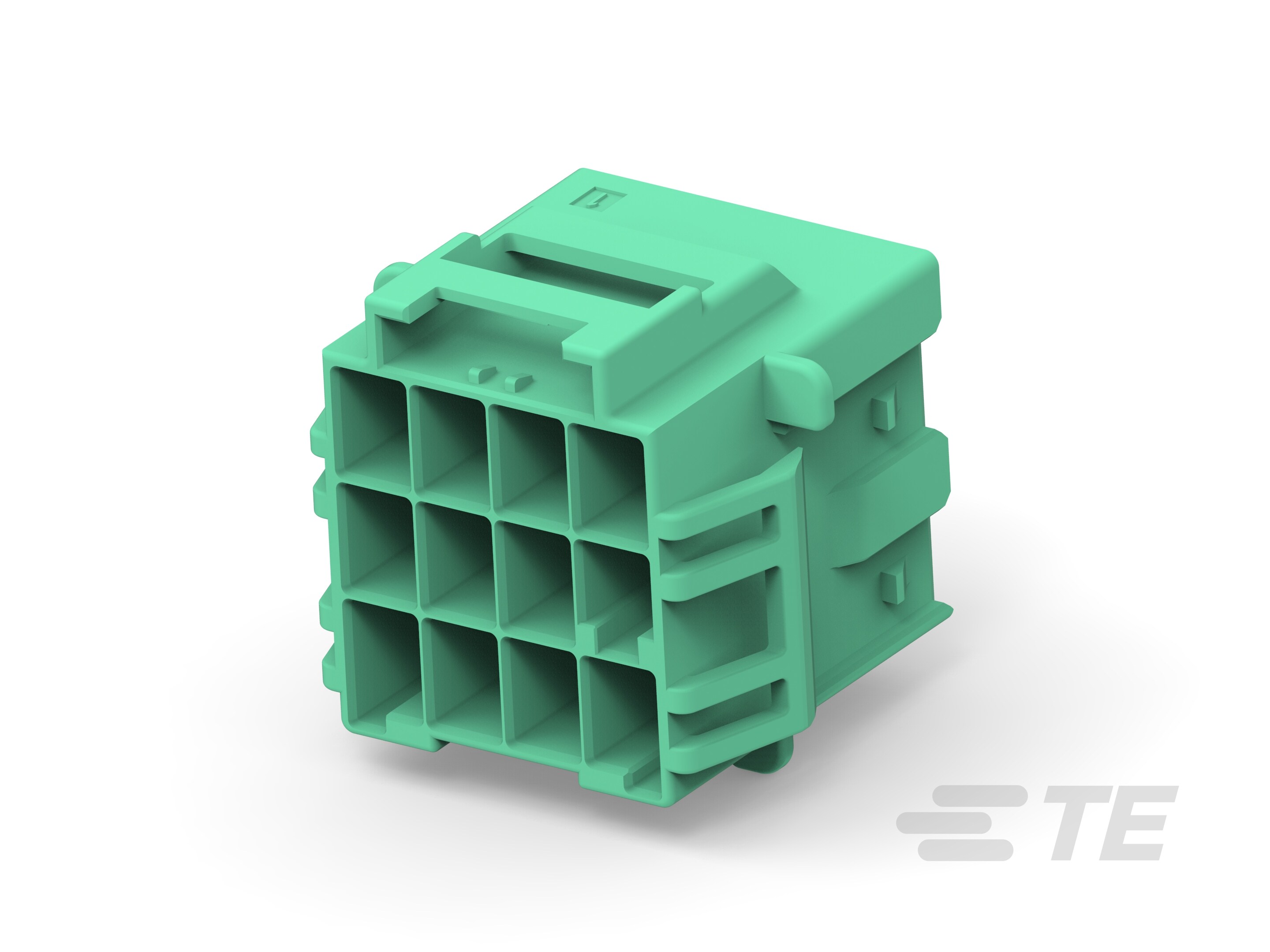

TE Connectivity Raychem Cable Protection 7-2232356-4	Green	Through Hole	Cap (Cover)	Glass Filled Nylon Polyamide (PA)	3	0.236 in	6 mm	12	Plug	Contacts Not Included	Male Pin	105 ░C	-55 °C	Latch Holder	Crimp	8.1 mm	0.319 in
